Compatible only with Ace arm
LED indicator to visualize precisely the ideal scanning distance
Quickly removable scanner
200mm blue laser line
Hard probe or touch-probe attachment
High resolution camera
Kreon Skyline 3D Scanner
A breakthrough in laser line scanning technology, the Kreon Skyline sets new standards with an incredible 200mm laser line width and 600,000 points per second data collection rate.
Large complex/detailed objects can be scanned quickly and efficiently. In addition the blue laser line enables the scanning of shiny objects such as machined metal to be scanned directly without the need for spray or dulling material.
Attributes
Very Fast
Wide Laser Line
Blue Laser Line
Key Specifications
Machine Specifications
The Skyline scanner can be equipped with a hard probe or touch-probe. This solution enables to scan and probe in the same measuring range, proving its utility and efficiency, especially for the alignment operations.
Decreased number of scan passes on the part thanks to 200 mm laser line
Faster movement of the 3D scanner assured by the increased frequency of up to 300 lines per second
Acquisition speed 600,000 points/sec, allowing to get quickly the dense point cloud
Ergonomic “push and pull” handle provides fabulous scanning efficiency.
Scan longer due to the 3D scanner lightness (weight under 400 g)
Reach and scan the hard-to-access zones of each part, thanks to compactness and reduced stand-off distance
Visualize precisely the ideal scanning distance with the LED indicator
Remove the scanner rapidly and without any tool to accelerate the probe mounting.
CLICK TO PLAY VIDEO

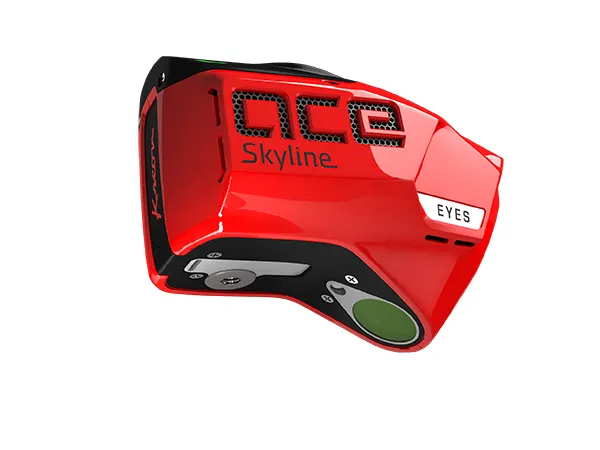

KREON SYKLINE EYES
THE MOST ACCURATE
The most accurate in the Skyline range of 3d scanners with an incredible 9 micron accuracy.

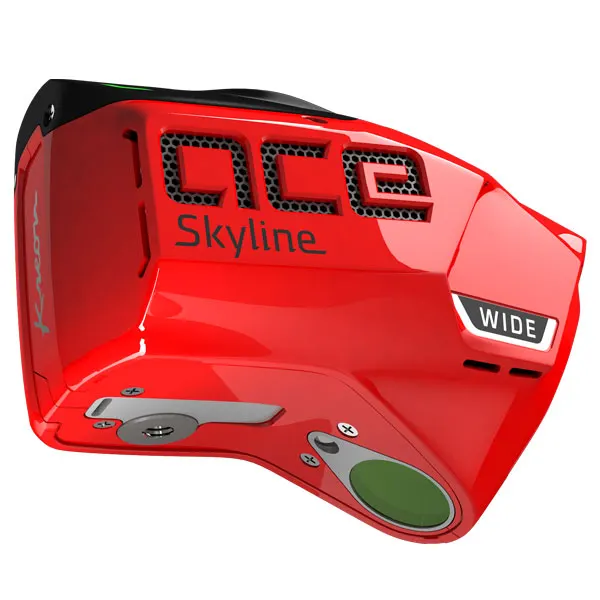

KREON SYKLINE WIDE
THE FASTEST
Scan large surfaces quickly and easily with the super wide 200mm laser band width

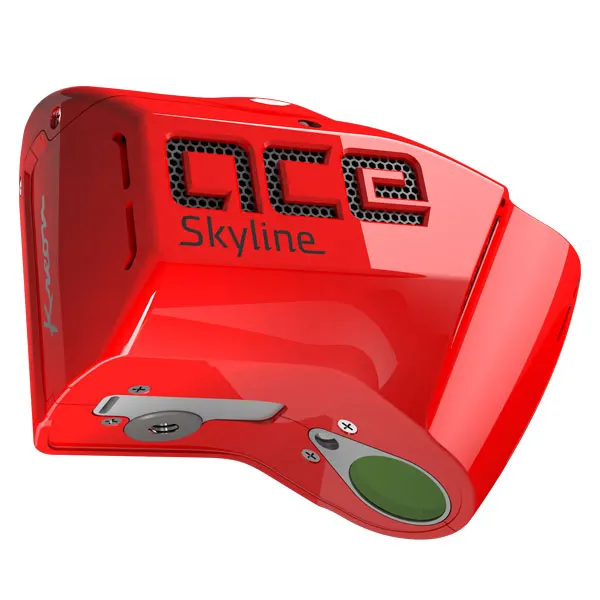

KREON SYKLINE OPEN
COST EFFECTIVE
The ‘Open’ Skyline is the most cost effective solution for the majority of 3D scanning jobs
Arm & Laser Packages
BACES ARM SOLANO PACKAGE
Eco Package
Baces Arm & Solano Laser
Low Cost solution
Fast and flexible
Light weight
ACE ARM SOLANO BLUE PACKAGE
Pro Package
Ace Arm & Solano Blue Laser
Mid level solution suitable for most applications
Temperature compensation
High accuracy and speed
ACE ARM ZEPHYR 2 BLUE PACKAGE
Ultimate Package
Ace Arm & Zephyr II Blue Laser
High End solution for high accuracy and resolution
Temperature compensation
Blue Laser for difficult to scan surfaces
ACE SKYLINE PACKAGE
Ace Package
Ace Skyline
Advanced Scanning Speed
High Resolution & Accuracy
Perfect Integration Between Scanner & Arm
CONTACT US FOR THE BEST PRICES ON THESE PACKAGES
Kreon SkylineDiscover the new scanning experience
Sector Suitability
Aerospace Automotive Industrial
Technical Specifications
| Scanner Specification | Skyline Eyes | Skyline Wide | Skyline Open |
|---|---|---|---|
| Scanning Speed | 6000,000 pts/sec | 6000,000 pts/sec | 6000,000 pts/sec |
| Accuracy | 9 microns | 15 microns | 20 microns |
| Laser Line Width | Up to 100mm | Up to 200mm | Up to 100mm |
| Field of View | 80mm | 110mm | 110mm |
| Line Resolution | 2000 points per line | 2000 points per line | 2000 points per line |
| Standoff Distance | 90mm | 85mm | 85mm |
| Auto Quality Check | Yes | Yes | Yes |
| Temperature Comp | Yes | Yes | No |
| Laser Class | Blue Class 2M | Blue Class 2M | Blue Class 2M |
