Dents, distortion, wear, pitting and wall loss, measured rather than estimated. We scan the damaged part on site and compare it with its CAD, a sound part or an earlier scan, so a repair or a claim is decided on numbers.

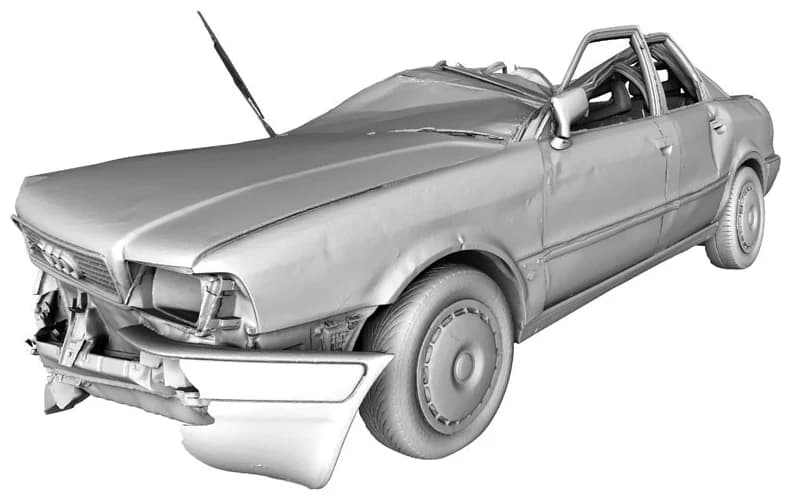

- Plant, vehicles and structures
- On site
- Pitting and wall loss in colour
- Depth maps
- Compare against last time
- Repeatable
How bad is it, exactly?
Corrosion, impact and wear all change shape. The question is always the same: by how much? Is it still within limits? Scanning answers it over the whole damaged area rather than at a few points and does it without taking anything apart.
We measure the damage against a reference: the part’s CAD, a sound part, or the same part scanned earlier. Where there is no reference, we compare the scan to a best-fit surface taken from the good areas of the part.
What we can measure
One scan of the corroded surface gives every measurement below, with or without a reference to compare against.

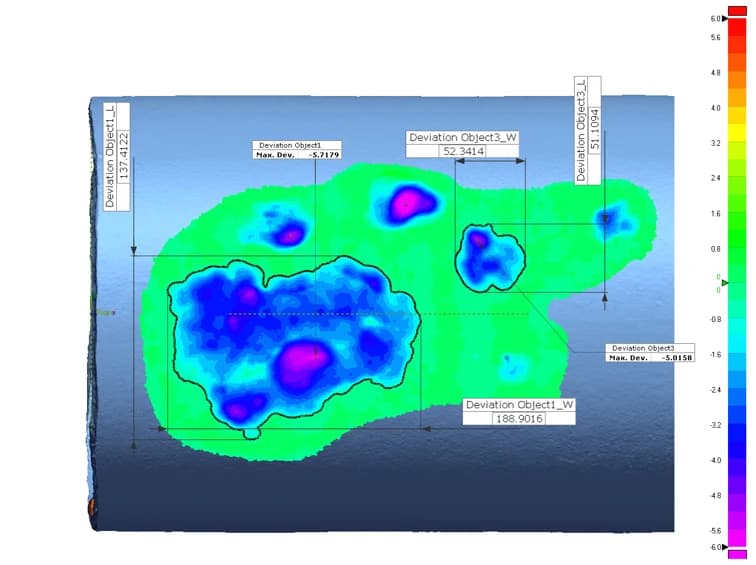

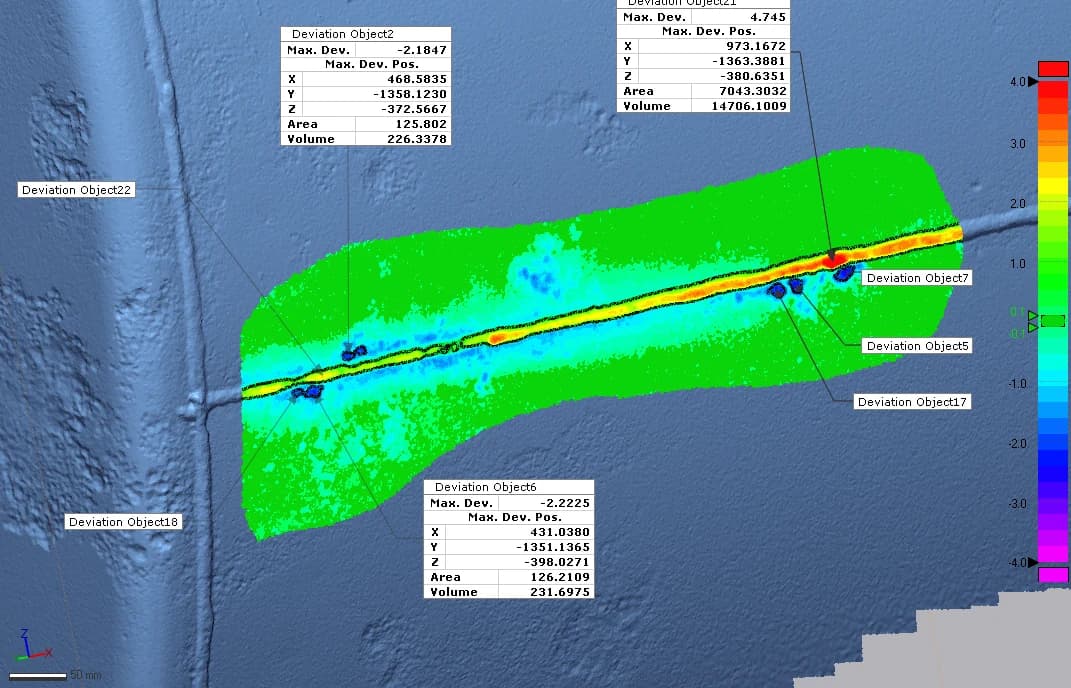

- Deepest point of corrosion within a single patch
- Total area of corrosion
- Volume of material lost to the corrosion

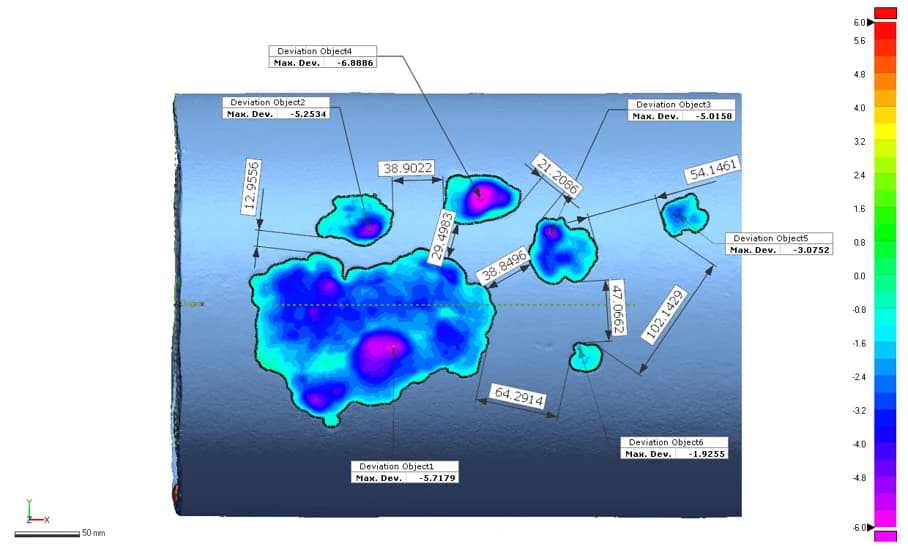

- Distance from a datum point

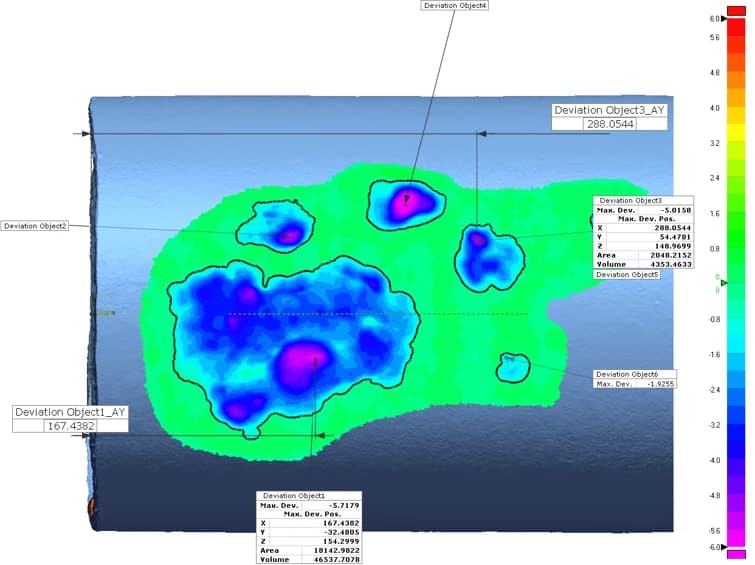

Mapped without reference dataCorrosion measured straight from the scan, with no CAD or sound part needed.
How a job runs
- 01
Agree the reference
CAD, a sound part or an earlier scan. Without one, we model the original surface from the undamaged area around it.
- 02
Scan on site
Handheld or arm-mounted, chosen for the size of the area and the depth that matters.
- 03
Compare
Deviation and depth mapped over the whole surface.
- 04
Report
Worst-case values, areas over your limit and the data for next time.
What you get back
In the formats your team already uses. Ask if you need something else.
Deviation map

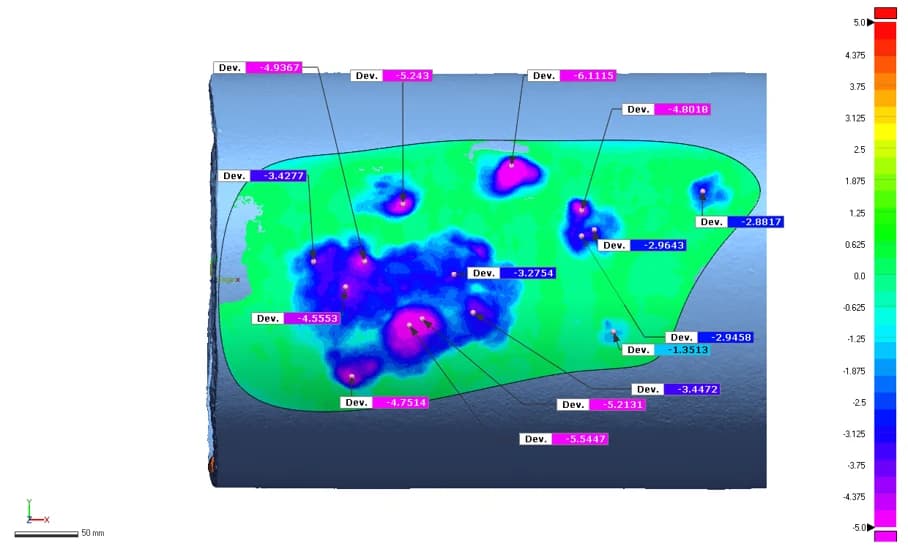

Depth and deviation shown as colour, with individual points picked out.
Baseline scan

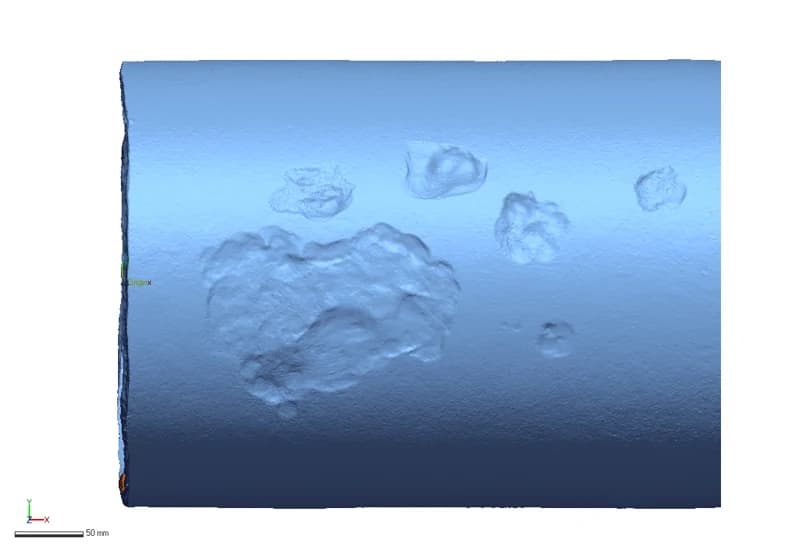

A 3D scan of a corroded pipe, kept on file as the reference for next time.
