Artec 3D scanners UK
Handheld, desktop and LiDAR scanners for inspection, reverse engineering or digital models. Europac 3D is an Artec Gold Certified Partner and Ambassador. It has supplied, trained and supported Artec customers in the UK as well as Ireland for over twenty years.
From £8,316 ex VAT, with every price on the page. Call 0330 229 0175
- 9
- Artec scanners in the UK range
- 2 µm
- point accuracy, from the Metrology Kit
- 0.2 mm
- resolution in HD Mode on the Leo and Eva
- Gold
- Certified Partner and Artec Ambassador
Nine scanners. Pick by the job.
Structured lightHandheld: full colour, no targets
Point and scan. Artec’s structured-light handhelds track the part by its shape and colour, so there is nothing to stick on it. The texture lands on the geometry it belongs to.
- Accuracy
- 0.1 mm
- Best for
- Medium to large objects
Wireless, with the computer and screen built in.
£29,232ex VAT
- Accuracy
- 0.1 mm
- Best for
- Medium objects
Light, fast, out of the case and scanning.
£8,316ex VAT
- Accuracy
- 0.05 mm
- Best for
- Small, detailed parts
Sharp edges, thin walls and fine detail.
£22,680ex VAT
Tell us what you scan and how accurate it needs to be. We will point you to the right one.
The scanner most of our customers end up buying.

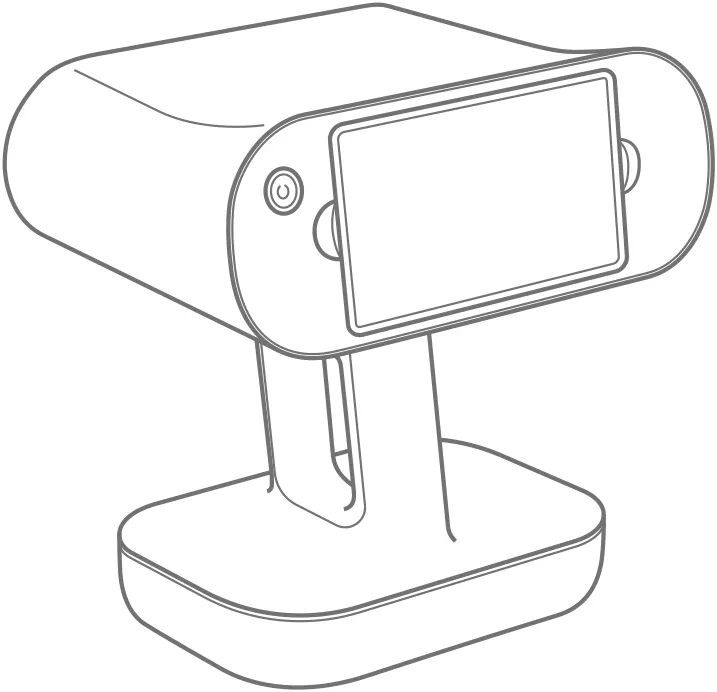

Our own film of the Artec Leo: the computer, battery and touchscreen are in the scanner, so there is no laptop or cable.
Video: Europac 3D on YouTube
HD Mode: an AI engine for sharper scans.
Artec’s HD Mode runs each scan through a neural engine trained on many thousands of samples. It recognises familiar shapes and surfaces, then rebuilds them with far more polygons. It is part of Artec Studio, so it works on Leo and Eva scanners already in the field as well as new ones.
Up to 0.2 mm resolution
Scans are enhanced by the neural engine into sharp models, up to 0.2 mm resolution.
Thin elements, sharp edges
Small thin features the standard setting could not capture, plus better accuracy around sharp or fine edges.
Hidden areas
Geometry in hard-to-reach regions is captured and accurately reconstructed.
Clean 3D data
Clean raw data gives accurate meshes and cuts the time spent in post-processing.
Where UK customers put them to work.
AutomotiveFixture inspection where it stands.A wireless Leo checks a welding fixture against its CAD on the shop floor, with no cable back to a laptop.

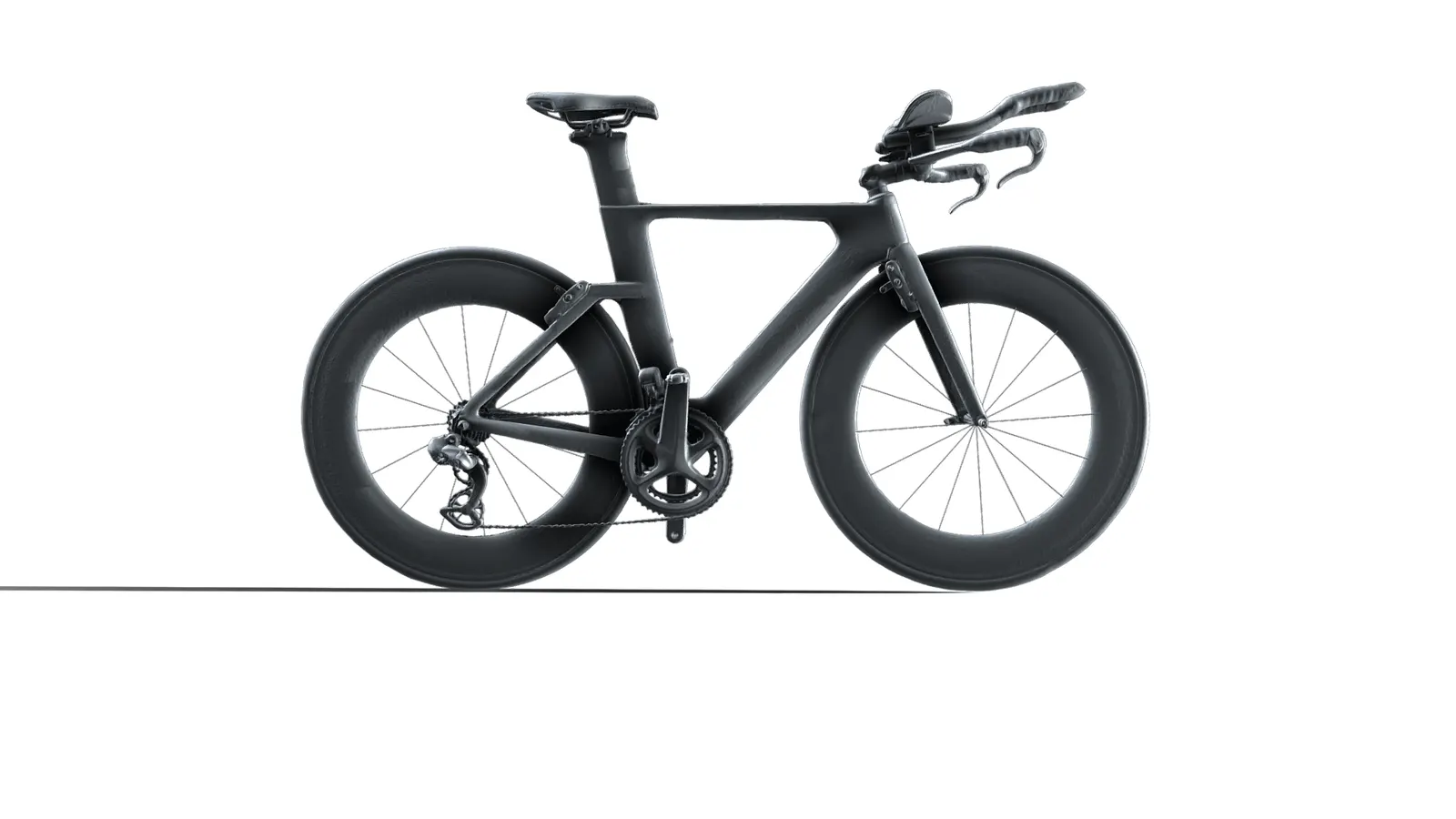

Reverse engineeringWheels, seats and panels back into CAD
MetrologySteel parts measured with the Point II
Artec Studio to scan. Design X to rebuild in CAD.
Artec scanners run on Artec Studio, which turns scans into clean meshes ready to print, render or measure. When the part has to go back into CAD, Geomagic Design X builds an editable solid model from the scan. We supply, install and train on both.
Try one before you buy one.
Send us a part and we will scan it on the scanner we think is right, then send you the data. Or hire a Leo, Eva or Spider by the day, with software and a laptop, delivered anywhere in the UK. When you buy, our Artec Studio courses get your team scanning from day one.
Gold Certified, here in the UK.
Europac became an Artec Gold Certified Partner in November 2017 after Artec’s training, webinars and exams. It is also an Artec Ambassador. When you need a hand, it is our own engineers who answer.
Demonstrated on your parts
At our site, at yours or online, on the parts you actually make.
Artec Studio training
Essentials and complete courses, so your team scans alone from day one.
UK support and warranty
Two years on most scanners, one on the Point II, with claims handled by us in the UK.
Education pricing
For UK universities and colleges, with teaching licences.
We still support earlier Artec scanners, from the Space Spider to the first Leo. Tell us your model for software, service and the current equivalent.
Talk to an Artec specialist.
Tell us what you scan and how accurate it needs to be. We will recommend the scanner, quote it and book a demonstration on your own parts.
FAQ
Not answered here?
Ask the engineers who run the machines. We answer the same working day.
What software comes with an Artec scanner?
Every Artec scanner needs Artec Studio, which is licensed separately. For scanning to 3D print it is all you need. For reverse engineering to CAD add Geomagic Design X. For inspection add Geomagic Control X or PolyWorks|Inspector. The Artec Jet is the exception: it runs on Artec Twins, which is also licensed separately. Artec Studio
What is the difference between the Leo and the Eva?
Both deliver 3D accuracy of up to 0.1 mm and capture colour. The Eva is cabled to a laptop. The Leo is completely wireless with its own processor and screen. It also sees further and has a larger field of view. The Eva is lighter and costs much less.
Should I choose the Ray II or the Jet?
The Ray II scans from fixed tripod positions, giving the highest accuracy and detail in a focused area. The Jet maps on the move, which is much faster over whole sites and in places without GPS. Many teams use the Jet for coverage and the Ray II where accuracy matters most.
Can I combine scans from different Artec scanners?
Yes. Artec scanners are designed to work together, with Artec Studio merging their data. You can scan a large assembly with a Leo and capture the critical features with a Spider II or Point II in one model.
What warranty comes with an Artec scanner?
The Leo, Eva, Spider II, Micro II, Neo and Jet come with a two-year warranty, while the Point II carries a one-year warranty. Warranty claims are handled through us rather than overseas.
Can the cost of a hire go towards buying a scanner?
Yes. Hire the scanner first and prove it on your own parts. If you buy, we offset the hire charges against the scanner. Hire covers the Leo, Eva and Spider. Ray II, Spider II and Point II are available on request. 3D scanner hire
What Artec training do you run?
Artec Studio Essentials is one day covering the full workflow from capture to export. Artec Studio Complete adds a second day on advanced processing, reverse engineering and inspection. Ray II and Jet users have their own one-day LiDAR courses. Every course includes up to three people in Cheshire or on your site. Training courses
What does Gold Certified Artec partner mean?
Europac received Artec Gold Partner status in November 2017 after a period of in-depth training, webinars and exams on Artec scanners as well as sales. We are an Artec Gold Certified Specialist and Ambassador.
