Preview / Record – Stop Button
6 LED Flash Lights
USB & Power Ports

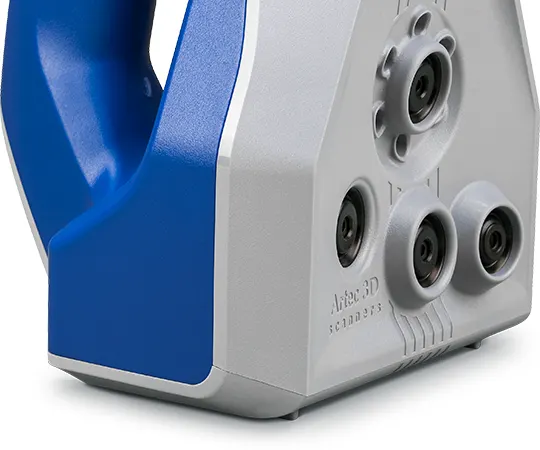

Artec Space Spider 3D Scanner
Industrial 3D Scanner with High Accuracy
Born out of the need for 3d scanning in outer space, the Artec Space Spider is the evolution of Artec 3D scanning to the next level of precision and resolution.
Thermal stabilisation and blue light technology allow for increased levels of accuracy and repeatability on difficult to scan objects, meaning the Artec Space Spider is an ideal solution for industrial 3d scanning applications such as high accuracy reverse engineering, quality control inspection and rapid 3D prototyping.
Price £19,150
Or £430 Per Month
Indicative 48 months with VAT Deposit
High Accuracy - Up to 0.05mm
2 Year Warranty
Lightweight 0.85Kg
Fast 7.5 Frames Per Second
High Resolution Up To 1 Million Points Per Sec.
Full Colour 1.3Mpx
Artec Space Spider makes reliable 3D scanning easy
Intricate parts with small details or thin walled components can be captured accurately and easily in a matter of minutes, offering a fantastic alternative to more traditional metrology based 3D scanning devices. Enhanced electronics and build quality allow for unsurpassed reliability over time, increasing the warranty to 2 years. Full texture capture increases the appeal to those looking to capture parts in colour.
LEARN HOW IT WORKS
Artec Space Spider 3D Models
A Selection of 3D scans created with the portable handheld scanner Artec Space Spider
Adidas Football Boot
View 3D Model
Manifold
View 3D Model
Gin Bottle
View 3D Model
Pope John Paul II
View 3D Model
Heart
View 3D Model
Coffin Plate
View 3D Model
Key Specifications
Artec Space Spider Scanner
Customising, innovating and streamlining 3D scanning.
Optional Equipment
Battery Pack
The battery pack for Spider means that you can scan for 6 hours uninterrupted, without the need for an external power supply. This is a great option if you need to scan outside or in difficult locations.
Hard Carry Case
The Spider and Space Spider come with a hard carry case as standard.
USB Cable for Spider
A fully tested cable featuring the connector needed for your Artec scanner.
Artec Studio
Industry acclaimed software for professional 3D scanning
Now new and experienced users can achieve high accuracy 3D scans.
Sector Suitability
Heritage CGI & Visualisation Film & Television
Technical Specifications
| Feature | Space Spider | Artec Eva |
|---|---|---|
| 3D Resolution up to | 0.1mm | 0.5mm |
| 3D point accuracy up to | 0.05mm | 0.1mm |
| 3D accuracy over 0.03% over distance up to | 0.03% over 100cm | 0.03% over 100cm |
| Texture resolution | 1.3mp | 1.3mp |
| Colours | 24bpp | 24bpp |
| Light source | Blue LED | Flash Bulb (no laser) |
| Linear field of view HxW @ closest range | 90 × 70 mm | 214x148mm |
| Linear field of view HxW @ furthest range | 180 × 140 mm | 536x371mm |
| Angular field of view | 30 × 21° | 30 × 21° |
| Working distance | 0.17 – 0.35 m | 0.4m-1m |
| Video Frame Rate up to | 7.5 fps | 16fps |
| Exposure time | 0.0005s | 0.0002s |
| Data Acquisition speed | 1,000,000 pts/sec | 2,000,000 pts/sec |
| Calibration | No special equipment reqd. | No special equipment reqd. |
| Output formats OBJ, PTX, STL, | OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB | OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB |
| Processing capacity | 40,000,000 triangles/ 1GB RAM | 40,000,000 triangles/ 1GB RAM |
| Processor | Intel I5 or I7 | Intel I5 or I7 |
| Dimensions HxDxW | 190 × 140 × 130 mm | 261.5×158.2×63.7 |
| Weight | 0.85kg /1.9lb | 0.85kg /1.9lb |
| Power consumption | 12v, 48w | 12v, 48w |
| Interface | 1xUSB2 USB 3.0 compatible | 1xUSB2 USB 3.0 compatible |
| Supported OS/ Windows 7 64bit Compatibility | Windows 7, 8, 10 – x64 | Windows 7, 8, 10 – x64 |
