3D Scanners
Artec Leo 3D Scanner UK
Wireless professional handheld 3D scanner with on-board processing and touchscreen — capture full-colour scans with no laptop or cables. The scanner most of our customers end up buying.
Power on/off button
See in real time what is being captured
Built in touchscreen to start/pause data capture
Camera, projector and LED flash around the front
Thermoregulation for consistent accuracy regardless of the ambient temperature
Ergonomic trigger button
Built in battery and wifi for market leading mobility

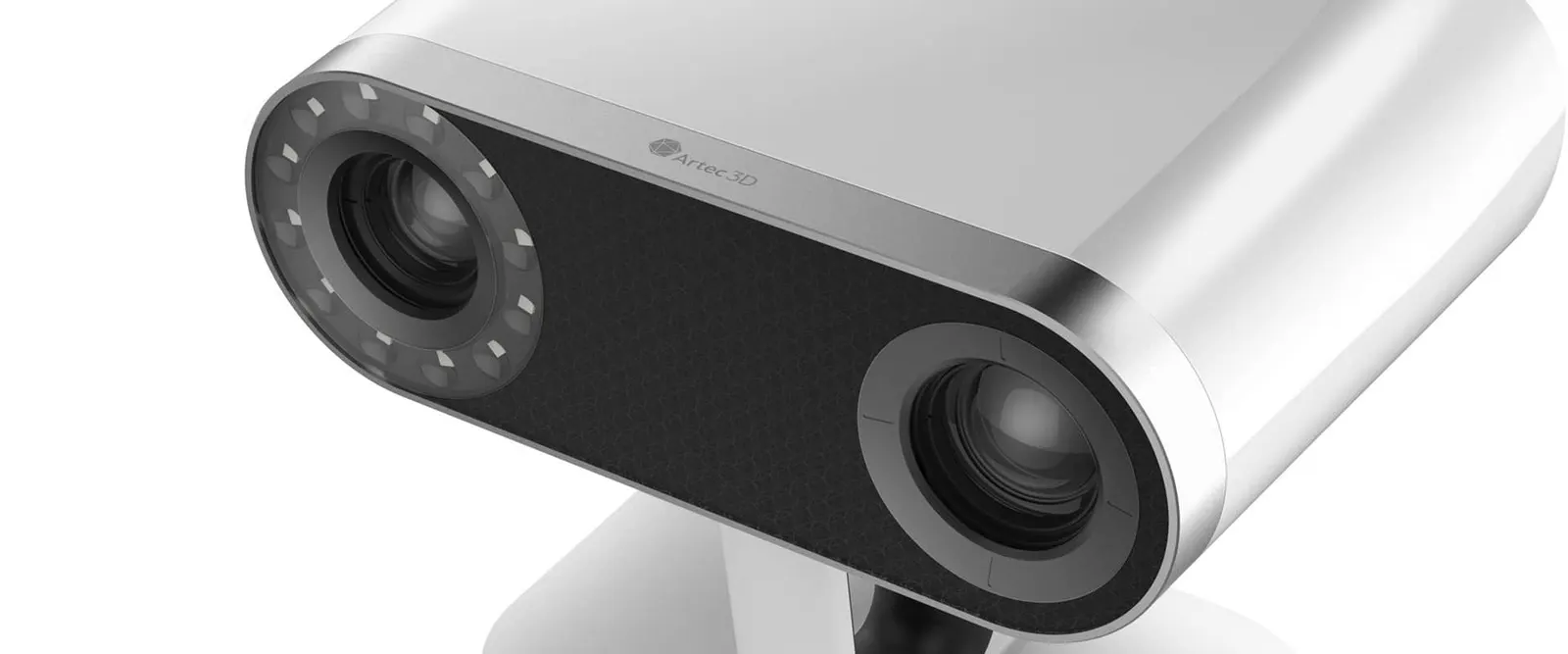

Artec Leo 3D Scanner
Next Level Portable Handheld 3D Scanner
Using a portable handheld 3D scanner has never been easier, the Artec Leo is the first system to offer full onboard automatic processing providing the most inuitive workflow, as easy as taking a video.
An integrated touch screen computer and battery pack enables truely mobile, wireless 3D scanning that can be taken to almost any location and environment without restriction.
Artec 3D’s flagship wireless scanner, Artec Leo offers fast, reliable 3D data collection for those looking to collect accurate data of objects whether it be for measurement or reverse engineering purposes.
As you scan your object, see the 3D replica being built in real time on Leo’s HD touch panel screen. Rotate the 3D model, check if you have captured all areas, and fill in any parts you may have missed.
Or £490 Per Month
Indicative 48 months with VAT Deposit
Extremely Fast - 80 FPS data collection
Integrated Touch Screen
Enhanced Colour Capture
Most Mobile 3D Scanner Available
Capture Large Areas Quickly
2 Year Warranty
Breakthrough 3D scanning speed
The 80 frames per second 3D reconstruction rate makes Artec Leo the fastest professional handheld 3D scanner on the market. Furthermore, with its large field of view, Artec Leo can 3D scan and process even large objects and scenes fast and accurately. And for even greater precision, users can point the scanner closer to the object to pick up intricate detail, just as they would zoom in with a video camera.
Lear How it Works
Artec Leo 3D Models
A Selection of 3D scans created with the portable handheld scanner Artec Leo
BMW I8
View 3D Model
Body Scan
View 3D Model
Dual Clutch Gearbox
View 3D Model
Sofa
View 3D Model
Free Miner
View 3D Model
Wicker Basket
View 3D Model
Key Specifications
Artec Leo 3D Scanner
A fully mobile scanning experience with the smartest 3D scanner on the market.
Designed for usability
A fully mobile scanning experience
With a built-in battery, touch panel screen and wireless connectivity, Artec Leo takes handheld 3D scanning to the next level. Have complete freedom of movement when you scan, stream video to a second device via Wi-Fi or Ethernet, if an additional display is needed, and upload your data at the touch of a button. Add to these features a carefully balanced, ergonomic design, devised to make 3D scanning in one hand easy and comfortable, and you have a next-generation professional 3D scanner, built with usability in mind.
The most mobile 3D scanner on the market
With its inbuilt battery and Wi-Fi connectivity, Artec Leo offers true freedom in 3D scanning. Move right around your object, unhampered by any wires!
Built-in touch panel screen and simple interface
See your 3D model being built directly on the scanner itself. Check your model, change the settings or touch it up with some simple tools in the easy to use interface on the touchscreen. Wirelessly connect to a second screen, for ease of scanning or collaborative work.
Built-in 9 DoF inertial system
The internal accelerometer, gyro and compass mean that Artec Leo is the only handheld 3D scanner to be able to precisely pinpoint its position within its surroundings, even differentiating between horizontal and vertical surfaces, such as floors and walls.
Unparalleled texture to geometry mapping
Features a unique optical system developed by Artec 3D, with the 3D camera and color camera combined and directed through the same lens. This technology provides the most advanced texture to geometry mapping.
Artec Studio
Artec Studio acclaimed software for professional 3D scanning
Now new and experienced users can achieve high accuracy 3D scans.
Sector Suitability
Heritage Industrial Gaming
Architecture Film & Television CGI & Visualisation
Technical Specifications
| Feature | Leo | Space Spider | Artec Eva |
|---|---|---|---|
| 3D Resolution up to | 0.2mm | 0.1mm | 0.2mm |
| 3D point accuracy up to | 0.1mm | 0.05mm | 0.1mm |
| 3D accuracy over 0.03% over distance up to | 0.03% over 100 cm | 0.03% over 100cm | 0.03% over 100cm |
| Texture resolution | 2.3mp | 1.3mp | 1.3mp |
| Colours | 24bpp | 24bpp | 24bpp |
| Light source | VCSEL | Blue LED | Flash Bulb (no laser) |
| Linear field of view HxW @ closest range | 246 × 153 mm | 90 × 70 mm | 214x148mm |
| Linear field of view HxW @ furthest range | 843 × 527 mm | 180 × 140 mm | 536x371mm |
| Angular field of view | 38.5 × 23° | 30 × 21° | 30 × 21° |
| Working distance | 0.35 – 1.2 m | 0.17 – 0.35 m | 0.4m-1m |
| Video Frame Rate up to | 80 fps | 7.5 fps | 16fps |
| Exposure time | 0.0005s | 0.0002s | |
| Data Acquisition speed | 4,000,000 pts/sec | 1,000,000 pts/sec | 2,000,000 pts/sec |
| Calibration | No special equipment reqd. | No special equipment reqd. | No special equipment reqd. |
| Output formats OBJ, PTX, STL, | OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB | OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB | OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB |
| Processing capacity | – | 40,000,000 triangles/ 1GB RAM | 40,000,000 triangles/ 1GB RAM |
| Processor | Embedded processors: NVIDIA® Jetson™ TX2, Quad-core ARM® Cortex®-A57 MPCore Processor, NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores | Intel I5 or I7 | Intel I5 or I7 |
| Dimensions HxDxW | 227 × 163 × 228 mm | 190 × 140 × 130 mm | 261.5×158.2×63.7 |
| Weight | 1.8 kg /4 lb | 0.85kg /1.9lb | 0.85kg /1.9lb |
| Power consumption | – | 12v, 48w | 12v, 48w |
| Interface | Wi-Fi, Ethernet, SD card | 1xUSB2 USB 3.0 compatible | 1xUSB2 USB 3.0 compatible |
| Supported OS/ Windows 7 64bit Compatibility | Not Required | Windows 7, 8, 10 – x64 | Windows 7, 8, 10 – x64 |
