3D Scanners

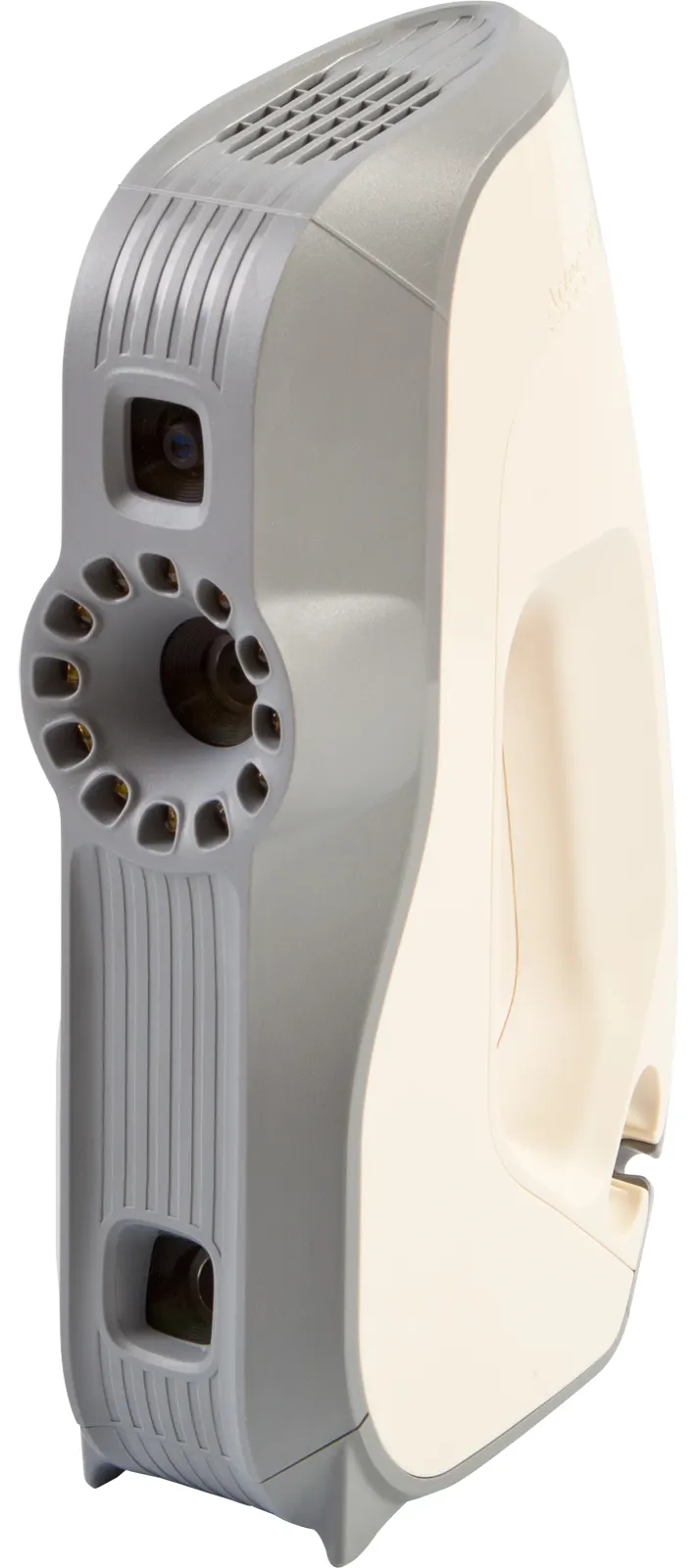

Artec Eva 3D Scanner

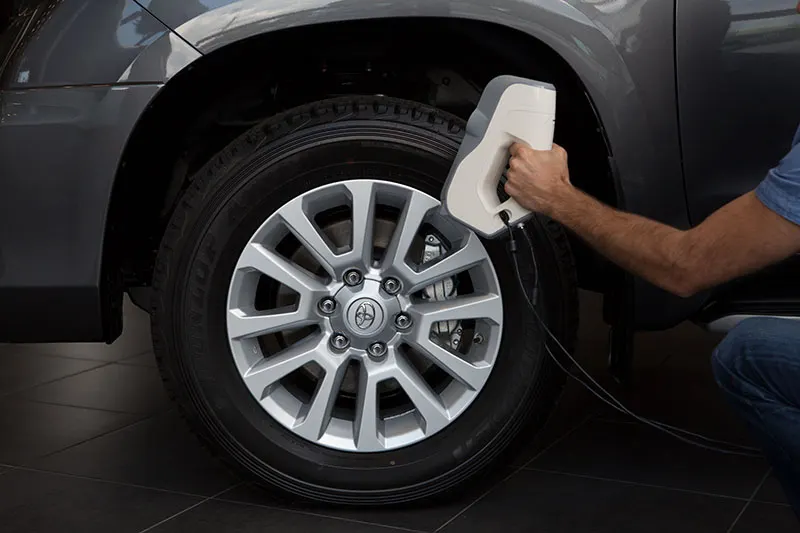

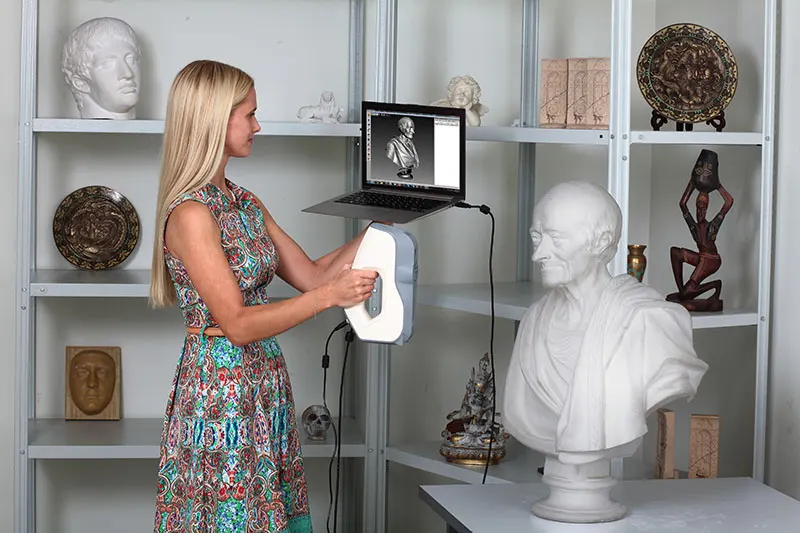

Artec Eva structured-light handheld 3d scanner, for quick and accurate models of medium sized objects in full colour. It is ideal for scanning objects such as human busts, alloy wheels and motorcycle exhaust systems. Eva is Artec's most popular 3d scanner largely becuase is light, fast and extremely versatile. The structured light system is safe to use and an excellent choice as an all-round scanner for capturing objects of any kind, including those with black and shiny surfaces.
Ventilation Holes
Preview / Record – Stop Button
Regular Flash for 3D Capture
Texture Camera
12 LED Flash
3D Camera
Portable, Lightweight Handheld 3D Scanner
The Artec Eva is a fast, affordable and easy to use 3d scanner perfect for capturing medium sized objects for applications such as heritage, medical and industrial manufacturing.
It is the market leader in hand held 3d scanning, simply take the scanner out of the case, plug in and start scanning without the need for sticky targets, pre-calibration or any other unnecessary time consuming set up.
3D Scanning is extremely fast, with a 536 x 371mm capture window and with the ability to grab 16 frames per second, large objects can be digitised quickly and easily. The object is stitched together in real-time, frame by frame on the screen allowing the user to see exactly what they have captured as the user moves around the object being captured.
Full colour texture creation allows for a new dimension in 3d scanning useful in CGI, museum and fashion applications.
Price £12,100
Or £290 Per Month
Indicative 48 months with VAT Deposit
High Accuracy - up to 0.1mm
Lightweight - 0.85kg
Capture in Full Colour
2 Year Warranty
Best Selling 3D Scanner On The Market
Fast 16 Frames per second
Powerful hybrid geometry and texture tracking and capture
Eva is able to read both the geometry and color of the object being 3D scanned. As a result it collects two sets of data by which to track and to perform post-processing.
Easier, smoother 3D scanning
Faster post-processing
Achieve best possible results with geometry and texture data combined
Scan even large, featureless objects using color differentiation
Option to scan with targets
LEARN HOW IT WORKS
Artec Eva 3D Models
A Selection of 3D scans created with the portable handheld scanner Artec Eva
Saddle
View 3D Model
Full Body Scan
View 3D Model
Audi 80 3D Scan
View 3D Model
“I have tested a lot of scanners. Mantis Vision, Creaform, Faro, NDI, but never used a scanner so easy to use. The speed is oustanding, the accuracy is great.”
Anders JanssonSymetri AB
“The resolution is killer. There isn’t a scanner at that price range that can capture all the details that we found.”
CoKreeate
“In the past I used other 3D scanner equipment like laser heads mounted on amrs and I can say that only Artec technology is able to perform 3D scanning of this kind of artwork on the fly or in hard environmental conditions.”
Benjamin MorenoCEO of IMA Solutions SARL
“The most capable scanner in our arsenal due to it’s applicability to almost any project.”
Digital Scan 3D
“Best overall value of any scanner in its class.”
3d-scanners.ireviews.com
“Crazy Efficient. The rate at hwich you can capture data is fantastic.”
Randy ParkerQuality Manager, Willman Industries
Price £5,800
Or £150 Per Month
Indicative 48 months with VAT Deposit
Artec Eva Scanner
These scanners have a huge range of applications across a wide variety of industries
Optional Equipment
Battery Pack
The battery pack for Eva means that you can scan for 6 hours uninterrupted, without the need for an external power supply. This is a great option if you need to scan outside or in difficult locations.
Bag for Eva
A convenient way to store and transport your Artec Eva scanner.
Hard Carry Case
Designed with Eva’s measurements in mind, this hard case will keep your scanner safe when storing or transporting it. Protects contents from water, dust, sunlight and shock.
USB Cable
A fully tested cable featuring the connector needed for your Artec scanner.
Artec Studio
Artec Studio – Industry acclaimed software for professional 3D scanning
Now new and experienced users can achieve high accuracy 3D scans.
Sector Suitability
Heritage Architecture CGI & Visualisation
Film & Television Fashion Gaming
Technical Specifications
| Feature | Artec Eva |
|---|---|
| Ability to capture texture | Yes |
| 3D Resolution up to | 0.2mm |
| 3D point accuracy up to | 0.1mm |
| 3D accuracy over 0.03% over distance up to | 0.03% over 100cm |
| Texture resolution | 1.3mp |
| Colours | 24bpp |
| Light source | Flash Bulb (no laser) |
| Linear field of view 214x148mm HxW@closest range | 214x148mm |
| Linear field of view 536x371mm HxW@furthest range | 536x371mm |
| Angular field of view | 30x21o |
| Working distance | 0.4m-1m |
| Video Frame Rate up to | 16fps |
| Exposure time | 0.0002s |
| Data Acquisition speed | 2,000,000 pts/sec |
| Calibration | No special equipment reqd. |
| Output formats OBJ, PTX, STL, | OBJ, PTX, STL, WRML, ASCII, AOP, CSV, PLY, E57 |
| Processing capacity | 40,000,000 triangles/ 1GB RAM |
| Multi Core Processing | Yes |
| Dimensions HxDxW | 261.5×158.2×63.7 |
| Weight | 0.85kg /1.9lb |
| Power consumption | 12v, 48w |
| Interface | 1xUSB2 |
| Supported OS/ Windows 7 64bit Compatibility | Windows 7 64bit Windows 8 64bit |
| Minimum computer requirements | Intel Core Quad 8GB RAM, NVIDEA/ATI Recommended: GeForce 400 series or better, at least 1GB memory. 300MB free disk space for installation |
