Thermo-regulated for better accuracy regardless of ambient temperature
Carbon fibre constructed arm
Internal counterbalance system takes the weight away from the user’s wrist
Ergonomic grip for comfortable use
Renishaw joint creates an interface for the use of laser scanners or probe.
Wifi connectivity to the PC
Integrated battery for portability, Upto 4hrs scanning or 8 hours probing

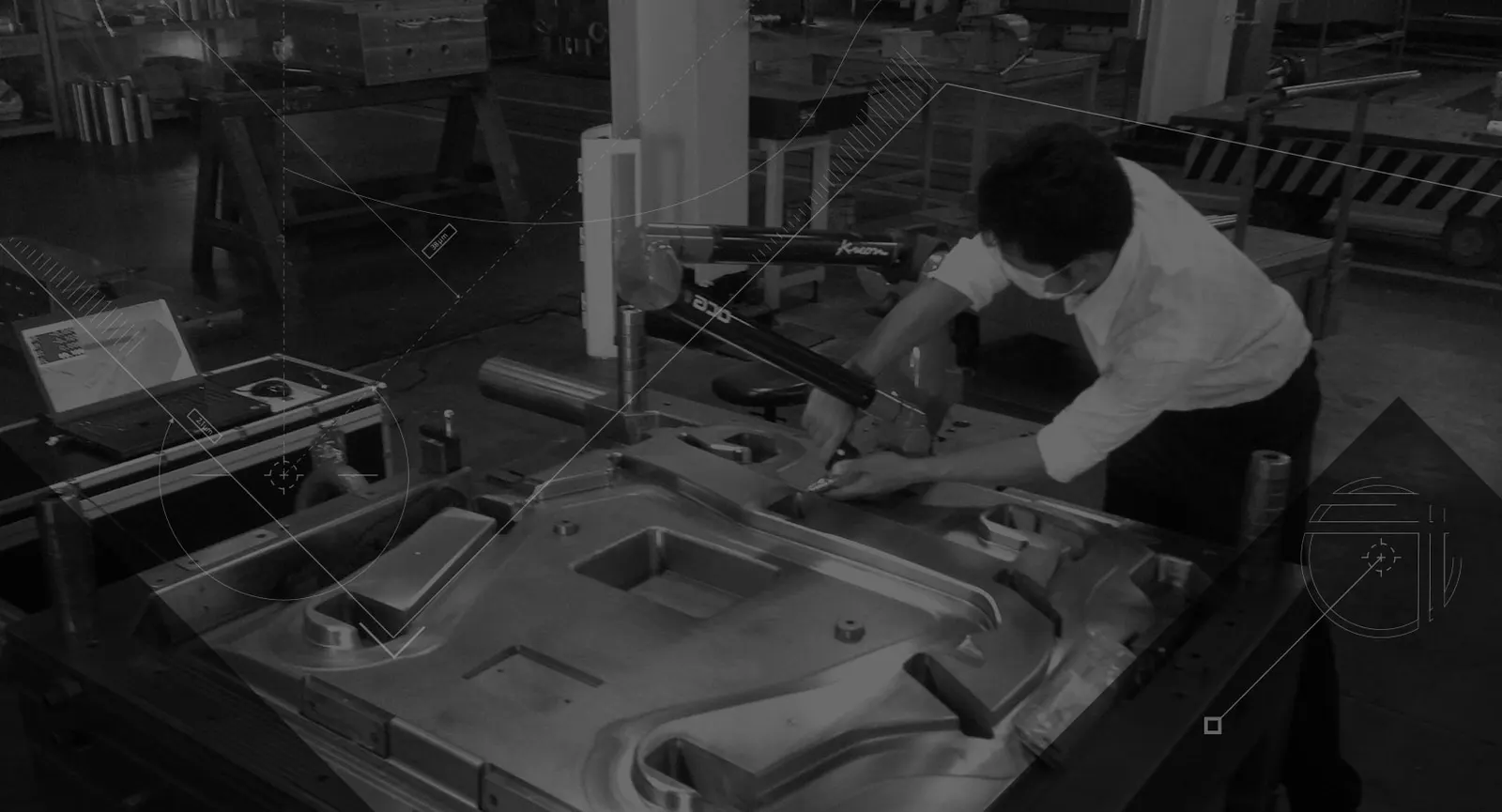

The Kreon Ace and Ace+ 7 Axis 3D Scanning Arms use the highest grade materials to produce an extremely accurate portable measuring arm suitable for shop floor or metrology lab applications.
The carbon fibre structure is thermally compensated to ensure the highest level of accuracy is achieved in all environments. Built in WIFI and internal battery mean the arm is truly portable, for use in probing applications. The Ace is compatible with the full range of Kreon 3D scanners.
All Carbon Fibre Construction
Integrated Battery
WIFI Enbaled
12 microns
Thermo-regulation accuracy
Switch between probing and 3d scanning
APPLICATIONS
3D Inspection Against CAD Model
Compare dimensions and overlay 3D Scan data in comparison to native CAD Models with Kreon probing and scanning arms.

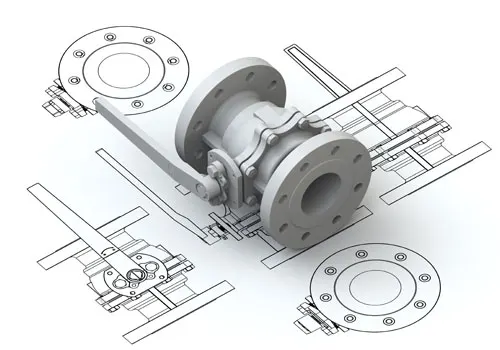

Reverse Engineering
Create Parametric CAD models and drawings from scan data for parts that have no legacy dimensional information.
Crash Measurement and 3D Scanning
Investigate and document 3D deformation of automotive and rail vehicles.
3D Digital Archiving
Europac3D has an extensive range of 3D Scanning equipment to record and create digital models of any object.
3D Animation and Rendering
3D Scanning for the creation of digital assets used for visualisation, CGI, animation and rendering.

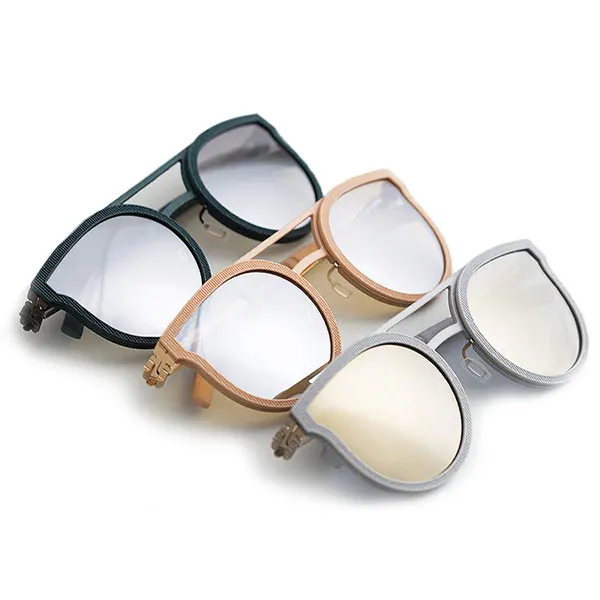

Rapid Prototyping
Use 3D scanners to create triangulated mesh models of objects and use this file directly in 3D Printing Applications.
First Article Inspection
First Article Inspection of components to ensure all Geometric Dimensions and Tolerances have been achieved.
Dimensional Measurement to Drawing
Quickly touch probe measurements and compare to nominal 2D drawing values and tolerances.
Arm Sizes
Starting at 2m and going up to a 4.5m spherical volume Kreon have listened to the needs of their customers and created a range of 3D scanning arms to suit most industries and applications.
THIS ARM WORKS WITH THESE SCANNERS
CLICK TO PLAY VIDEO
Kreon Ace Measuring Arms
Built using innovative technology and high quality materials
Sector Suitability
Aerospace Automotive Industrial
Technical Specifications
| Ace+ 7 Axis | Axes | Working Volume | P Size Size Error on a Sphere | P Form Form Error on Sphere | L Dia Articulated Location Error | SPAT Single Point Articulation Tets | E Uni Length Measurement Error |
|---|---|---|---|---|---|---|---|
| Ace+ 7-25 | 7 | 2.5 m | 0.012mm | 0.022mm | 0.047mm | 0.025mm | 0.033mm |
| Ace+ 7-30 | 7 | 3.0 m | 0.017mm | 0.030mm | 0.074mm | 0.039mm | 0.057mm |
| Ace+ 7-35 | 7 | 3.5 m | 0.021mm | 0.037mm | 0.089mm | 0.045mm | 0.067mm |
| Ace+ 7-40 | 7 | 4.0 m | 0.026mm | 0.042mm | 0.105mm | 0.054mm | 0.084mm |
| Ace+ 7-45 | 7 | 4.5 m | 0.040mm | 0.051mm | 0.114mm | 0.067mm | 0.105mm |
| Ace 7 Axis | Axes | Working Volume | P Size Size Error on a Sphere | P Form Form Error on Sphere | L Dia Articulated Location Error | SPAT Single Point Articulation Tets | E Uni Length Measurement Error |
|---|---|---|---|---|---|---|---|
| Ace-7-20 | 7 | 2.0 m | 0.012mm | 0.020mm | 0.044mm | 0.022mm | 0.037mm |
| Ace-7-25 | 7 | 2.5 m | 0.015 mm | 0.024 mm | 0.055 mm | 0.027mm | 0.041mm |
| Ace-7-30 | 7 | 3.0 m | 0.020 mm | 0.035 mm | 0.081 mm | 0.042mm | 0.069mm |
| Ace-7-35 | 7 | 3.5 m | 0.024 mm | 0.041 mm | 0.095 mm | 0.054mm | 0.079mm |
| Ace-7-40 | 7 | 4.0 m | 0.029 mm | 0.048 mm | 0.0115 mm | 0.066mm | 0.094mm |
| Ace-7-45 | 7 | 4.5 m | 0.045 mm | 0.060 mm | 0.125 mm | 0.078mm | 0.114mm |
