Create Inspection Points on part or assemby to be checked
Overlay the CAD model against the real world part to check for missing parts, errors or manufacturing defects
Get rid of traditional drawings and paper checks with Supar Augmented checking and verification software
Generate PDF reports on the fly via the Ipad app
Instant real time visualisation of a part overlaid to the CAD model
For more information or if you would like a free demonstration.
Contact Us
Using Augmented Reality for Visual Quality Control
Does your company perform visual quality checks on geometry and assemblies?
Supar Augmented Reality Interactive inspection software offers an automatic process that utilises the 3d scanning technology built into the latest Apple devices. It replaces manual, labour intensive drawing or CAD based visual inspection processes with automated AR inspection.
The Supar Augmented Reality Tracking app enables the instant overlay of any CAD model against the real world part enabling the user to instantly check and report quality problems such as missing holes, spot weld location, bolt status, and sealing/bead location.
Remote Visual Inspection
Rapid Error Detection
Flexible, Digital, Mobile
AR Inspection
Communication
Reduce Manual Tasks by 75%
Supar Composer
Supar Composer is a PC based program that is used to prepare CAD data in peparation for the inspcetion sequence. Inspection points of interest can be marked up on the CAD and saved as program, which will then be followed interactively by the operator using the AR scanning device.
Lear How it Works
Artec Leo 3D Models
A Selection of 3D scans created with the portable handheld scanner Artec Leo

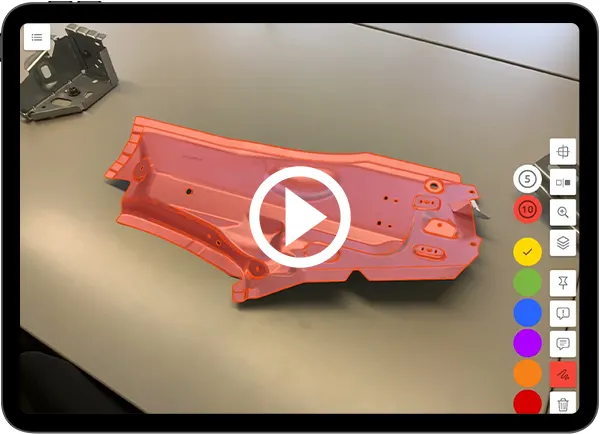

Sheet Metal Inspection
Incoming parts or sub assembly inspetion checks
Quick Preliminary Inspection
Visual Inspection Directly at supplier
Body in White checks – Stud, weld, bead and hole location

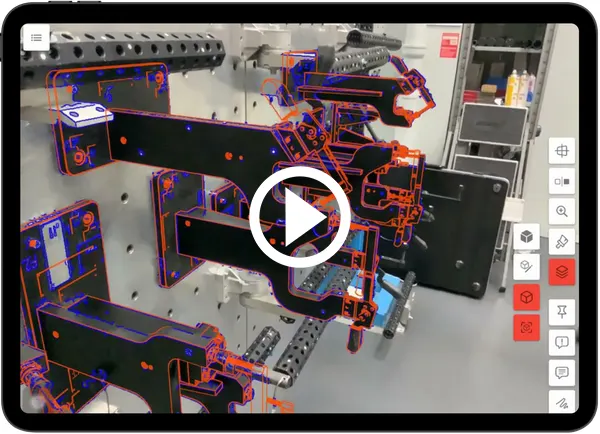

Fixture Setup And Validation
Check and adjust measuring fixtures quickly
Check for missing elements of fixturing
Ensure all parts installed and in correct position
Perfect for new fixture build

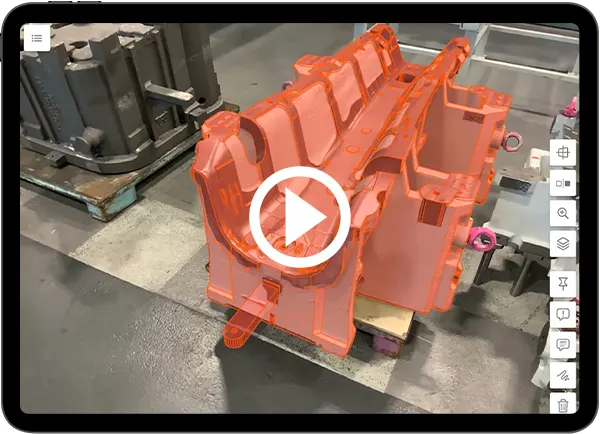

Tool Quality Inspection
Visual Inspection to detect incorrect tool component positioning
Reduce time for tool acceptance
Identify missing machining/holes
Visual AR Inspection at customer site

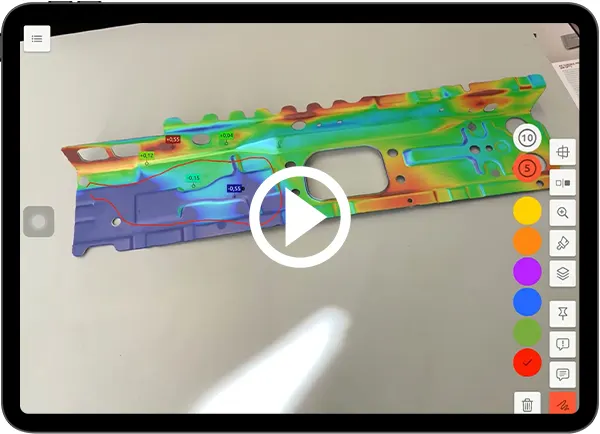

Geometry Inspection
Colourmap AR projection with scanning data
Customizable Colour Scale
Comments, photos and inteligent reporting
Free sketch on part
Manual label creation

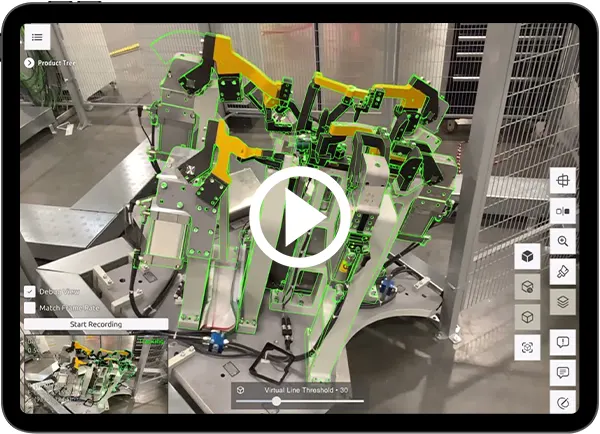

Gripper Geometry
Series gripper needing to be retaught
Gripper geometry maintenance
Narrowed down to one side
No knowledge required on what has occurred

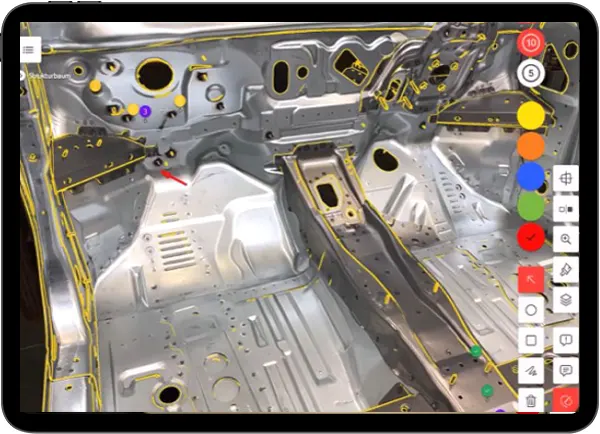

Body In White Checking
Create AR inspection sequence to check critical features
ARC weld number and location
Bolt status check
Hole quantity and location check
A little bit about augmented reality………
A fully mobile paperless experience
Augmented Reality allows you to bring the virtual world into the real one creating a new unique environment, opening new opportunities in Visual Inspection and Quality Control.
Visual inspection is not new, there are existing processes to check geometry or assembly. It is important to understand and connect AR interactive inspection to these processes
