Name: Kreon Onyx Skyline
Brand: kreon
SKU: 1106

Kreon’s premium Onyx measuring arm with the Skyline laser scanner — the highest-accuracy portable arm-and-scanner combination in the range, with system accuracy from 0.038 mm.

Kreon Onyx Skyline — Unprecedented 3D Scanning Quality

The Onyx is Kreon's premium measuring arm, and with the Skyline scanner on it you have the most accurate portable arm-and-scanner combination they make. Like every Kreon arm it ships with touch probing as standard — probing is the base product, the scanner is the upgrade that captures the whole surface rather than discrete points. Scanner and probe work in the same measuring range, and the scanner removes in seconds without tools.

Touch probe included as standard — probing and scanning interchange on the arm

Skyline blue laser scanner for full-surface capture, even on gloss black, metal and carbon surfaces

6- or 7-axis arms with working volumes from 2 m to 5 m

EasyClip removable handle on the 7-axis arm for measuring in confined cavities

Infinite rotation axes for complete freedom of movement

Portable enough for workshop, measuring lab or on-site use

Pairs with Kreon Zenith, PolyWorks|Inspector and Geomagic software

Key Specifications

600,000 pts/sec

Scanning speed

9 µm (2σ)

Scanner accuracy

300 mm

Max laser line width

300 Hz

Line frequency

Maximum values across the Skyline scanner range — the table below shows how each model compares.

Skyline Scanner Range

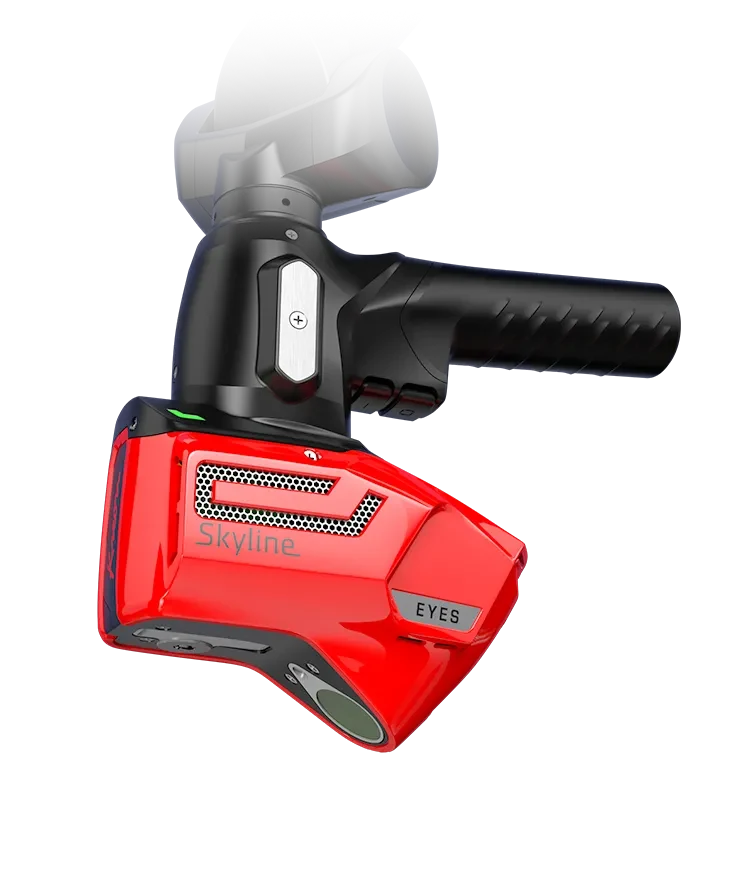

Kreon Skyline Eyes 3D scanner — The Skyline scanner mounts and removes without tools

Specification	Skyline Eyes	Skyline Wide	Skyline Xtra Wide	Skyline Open
Max scanning speed	600,000 pts/sec	600,000 pts/sec	600,000 pts/sec	200,000 pts/sec
Accuracy (2σ)	9 µm	15 µm	28 µm	15 µm
Max laser line width	100 mm	200 mm	300 mm	100 mm
Max frequency	300 Hz	300 Hz	300 Hz	200 Hz
Laser line colour	Blue	Blue	Blue	Blue
Line resolution	25 µm	50 µm	60 µm	50 µm
Stand-off distance	90 mm	85 mm	100 mm	85 mm
Field of view	80 mm	110 mm	135 mm	110 mm
Temperature compensation	Yes	Yes	Yes	No

Onyx Measuring Arm Range

The Onyx range covers 6- and 7-axis arms with working volumes from 2 m to 5 m. Choose the 7-axis arm for ergonomic scanning with the Skyline; choose the 6-axis arm where pure probing accuracy is the priority. Every arm is certified to the international ISO 10360-12 standard, so the accuracy figures below are directly comparable with any other manufacturer's.

Arm size	Measuring volume (diameter)	Maximum reachable distance (diameter)
Onyx-20	2 m	2.42 m
Onyx-25	2.5 m	2.92 m
Onyx-30	3 m	3.42 m
Onyx-35	3.5 m	3.92 m
Onyx-40	4 m	4.42 m
Onyx-45	4.5 m	4.92 m
Onyx-50	5 m	5.42 m

Probing Accuracy — ISO 10360-12

Onyx 7-axis (the scanning arm):

Arm model	E Uni	P Size	P Form	L Dia	SPAT
Onyx 7-20	0.024 mm	0.010 mm	0.018 mm	0.040 mm	0.018 mm
Onyx 7-25	0.027 mm	0.011 mm	0.021 mm	0.044 mm	0.020 mm
Onyx 7-30	0.043 mm	0.016 mm	0.028 mm	0.072 mm	0.032 mm
Onyx 7-35	0.053 mm	0.020 mm	0.035 mm	0.087 mm	0.043 mm
Onyx 7-40	0.068 mm	0.025 mm	0.040 mm	0.102 mm	0.052 mm
Onyx 7-45	0.100 mm	0.038 mm	0.049 mm	0.110 mm	0.065 mm
Onyx 7-50	0.120 mm	0.052 mm	0.062 mm	0.125 mm	0.089 mm

Onyx 6-axis (the probing arm):

Arm model	E Uni	P Size	P Form	L Dia	SPAT
Onyx 6-20	0.023 mm	0.007 mm	0.015 mm	0.030 mm	0.016 mm
Onyx 6-25	0.026 mm	0.008 mm	0.016 mm	0.032 mm	0.018 mm
Onyx 6-30	0.038 mm	0.012 mm	0.022 mm	0.046 mm	0.027 mm
Onyx 6-35	0.051 mm	0.015 mm	0.030 mm	0.062 mm	0.035 mm
Onyx 6-40	0.062 mm	0.020 mm	0.036 mm	0.078 mm	0.042 mm
Onyx 6-45	0.072 mm	0.024 mm	0.041 mm	0.090 mm	0.057 mm
Onyx 6-50	0.100 mm	0.029 mm	0.049 mm	0.102 mm	0.072 mm

Scanning System Accuracy — Arm Plus Skyline

System accuracy of each Onyx 7-axis arm with each Skyline scanner, as published by Kreon:

Arm model	Skyline Eyes	Skyline Wide	Skyline Xtra Wide	Skyline Open
Onyx 7-20	0.038 mm	0.042 mm	0.054 mm	0.044 mm
Onyx 7-25	0.040 mm	0.044 mm	0.056 mm	0.047 mm
Onyx 7-30	0.050 mm	0.055 mm	0.067 mm	0.057 mm
Onyx 7-35	0.064 mm	0.069 mm	0.081 mm	0.072 mm
Onyx 7-40	0.075 mm	0.079 mm	0.091 mm	0.082 mm
Onyx 7-45	0.093 mm	0.102 mm	0.114 mm	0.109 mm
Onyx 7-50	0.120 mm	0.130 mm	0.142 mm	0.140 mm

Onyx or Ace?

The scanner on the end is the same Skyline. The arm is the difference: Onyx carries tighter accuracy at every size for the most demanding inspection work, while the Ace covers general metrology at a friendlier price. Kreon's own ISO 10360-12 figures put it plainly — at the popular 2.5 m size the Onyx 7-axis measures to an E Uni of 0.027 mm against 0.036 mm for the Ace, and with the Skyline Eyes fitted the system accuracy is 0.040 mm against 0.046 mm. If your tolerance stack says every micron counts, this is the arm.

Arm size	Onyx 7-axis E Uni	Ace 7-axis E Uni	Onyx + Skyline Eyes	Ace + Skyline Eyes
2 m	0.024 mm	0.033 mm	0.038 mm	0.040 mm
2.5 m	0.027 mm	0.036 mm	0.040 mm	0.046 mm
3 m	0.043 mm	0.057 mm	0.050 mm	0.061 mm
3.5 m	0.053 mm	0.067 mm	0.064 mm	0.076 mm
4 m	0.068 mm	0.081 mm	0.075 mm	0.088 mm
4.5 m	0.100 mm	0.110 mm	0.093 mm	0.120 mm
5 m	0.120 mm	0.138 mm	0.120 mm	0.140 mm

Applications

Quality control and dimensional inspection to the tightest tolerances

First article inspection

Reverse engineering and CAD comparison

Maintenance, repair and tooling verification

Design and R&D

See it on your own parts

Arrange a demonstration with your own parts — the honest way to choose between Onyx, Ace and the optical systems.

Arrange a demonstration

Works with

Confirmed by us, not inferred from a spec sheet. If yours is not listed, ring and we will check.
