3D Scanners
Artec Micro II 3D Scanner UK
Automated desktop 3D scanner for very small objects — jewellery, dental, electronics — with micron-level accuracy and one-click capture.
3 Axis Rotational Scanning Platform
4 x 13MP Cameras
Artec Micro II – Compact Desktop 3d Scanner

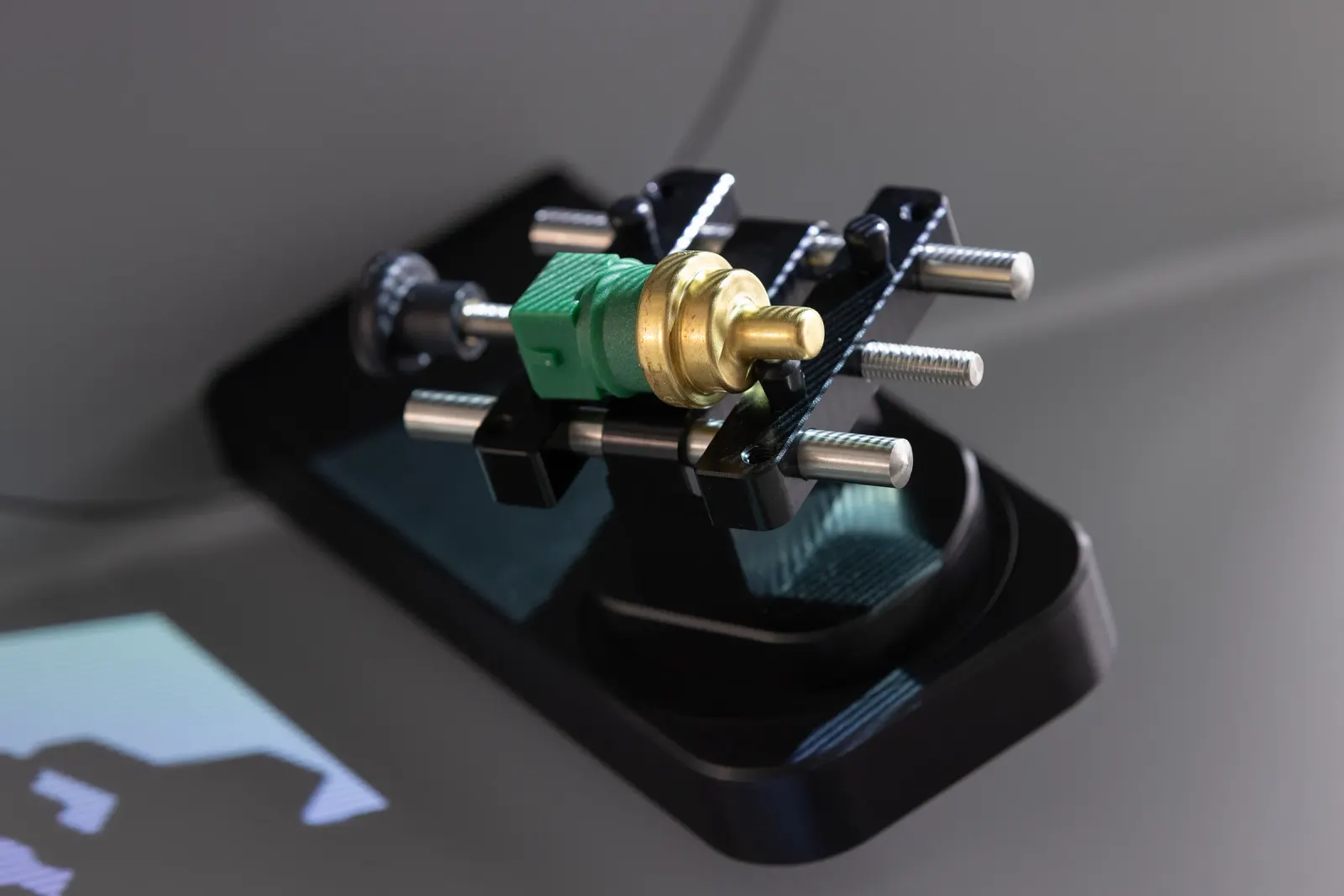

Scan Platform can 3D scan parts up to 20cm
Artec Micro II 3D Scanner
High Precision 5 micron 3D Scanning with volume up to 20cm
The all new Artec Micro II is the latest high accuracy desktop 3D scanner from Artec3D. The 3D scanner can achieve an incredible accuracy of 5 microns for capturing small objects such as jewellery, dentistry, industrial turbine blades and gears.
Parts can be 3d scanned simply by using the ‘one click’ workflow. The intelligent system can figure out the necessary angles to 3D scan a part, utilising all 3 rotational axes at its disposal.
The extremely fast system can capture up to 1 million points per second to achieve unrivalved accuracy and resolution perfect for reverse engineering and metrology applications.
Or £395 Per Month
Indicative 48 months with VAT Deposit
5 micron accuracy
Automatic Part Scanning
Blue LED for shiny surfaces
Automatic Calibration
4 x 13MP Cameras
2 Year Warranty
Features of Artec Micro II Desktop 3D Scanner

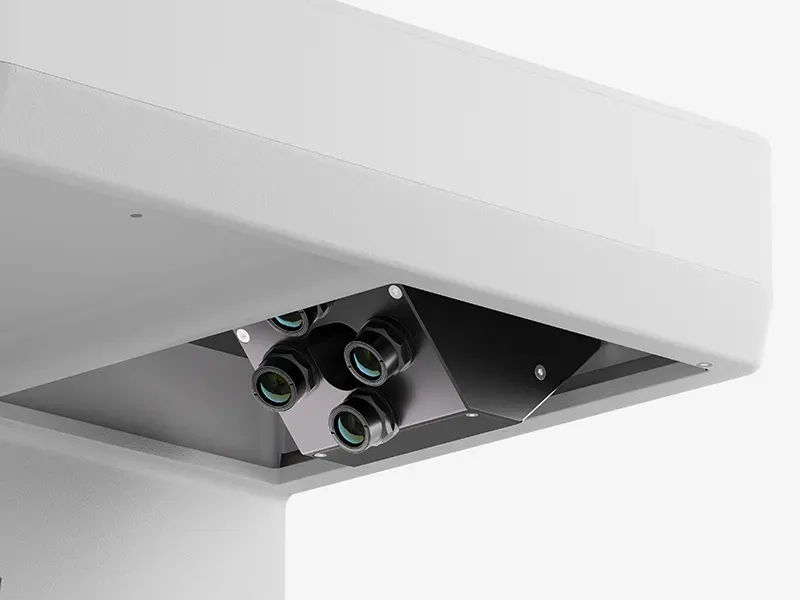

4 x 13 MP Cameras
Equipped with 4 high resolution cameras for picked the samllest of details

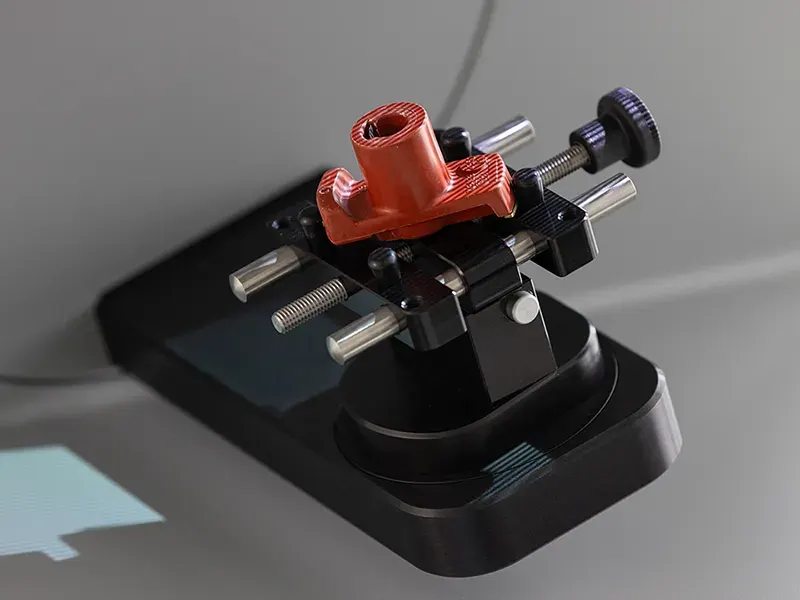

Deep Scan
4 strategically placed cameras enable the deep scan capture of the smallest nooks and crannies.
High Res Colour Capture
Visualise your objects in full colour with the in-built 24BPP capture cameras.

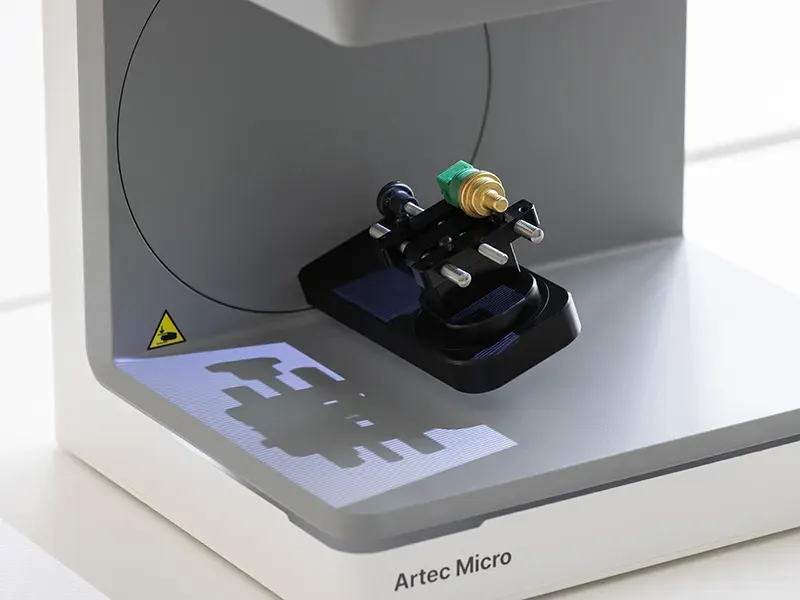

‘One Click’ Scanning
Automated 3D Scan routines, utilising all 3 axes of movement.
Learn How it Works

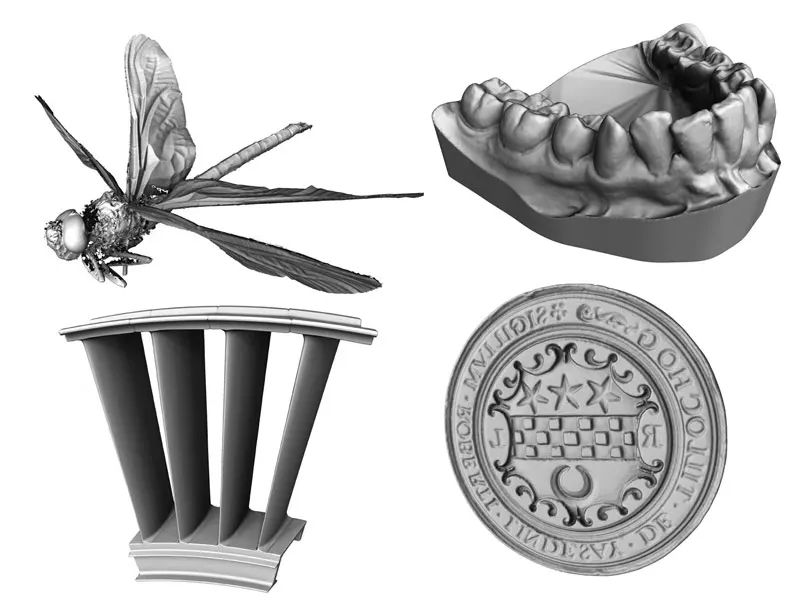

Fine Precision at Volumes up to 200mm
The Artec Micro II provides effortless 3d scanning of small parts, less than volumes of 200 x 200 x150mm. The one button click operation creates for a hassle free programming process, just mount the part and let the intelligent scan system from Artec3D do the rest!
After your part has been captured, Artec Studio software offers the capability to quickly either inspect or reverse engineer the component. Or alternatively the data can be exported to third party software for further analysis.

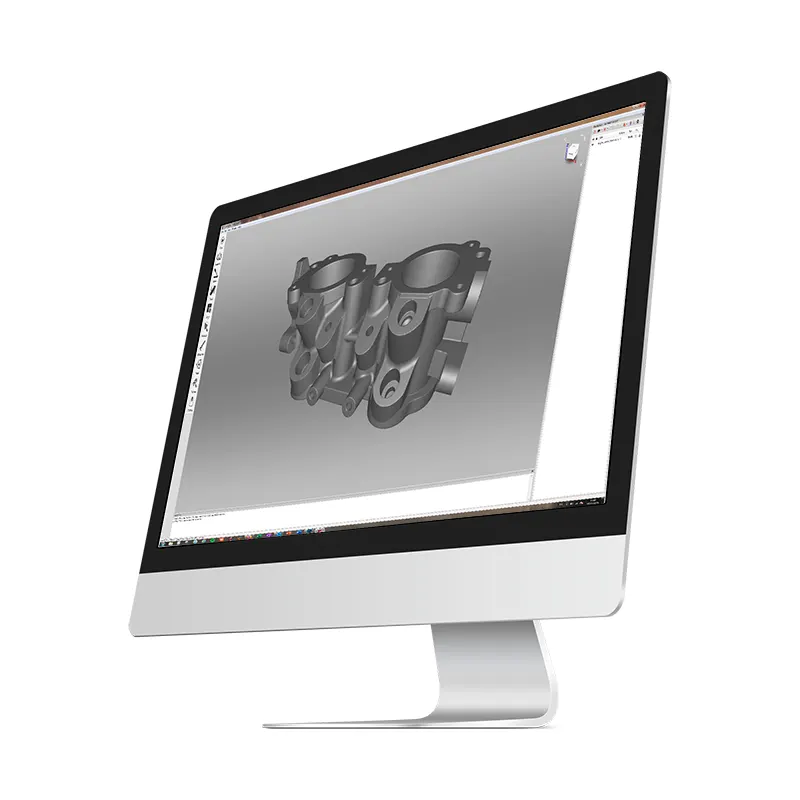

Seamless Software Integration
The Artec Micro II 3D scanner works seamlessly with Artec Studio software for fast automated capture of small jewellery, dental and industrial objetcs. Export 3d mesh (STL) files into a variety of metrology and reverse engineering software such as Polyworks Inspector, Control X and Design X for downstream processing.
APPLICATIONS

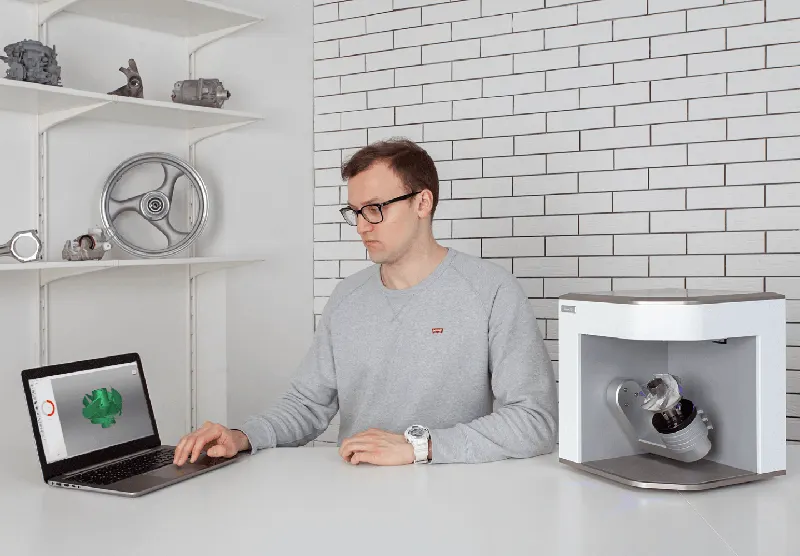

3D Inspection Against CAD Model
Compare dimensions and overlay 3D Scan data in comparison to native CAD Models with the Artec Micro.

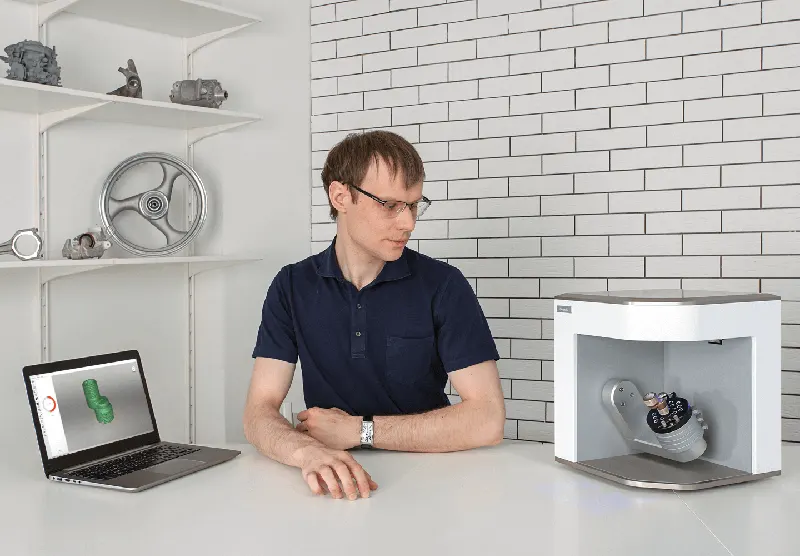

Reverse Engineering
Create Parametric CAD models and drawings from scan data for parts that have no legacy dimensional information.

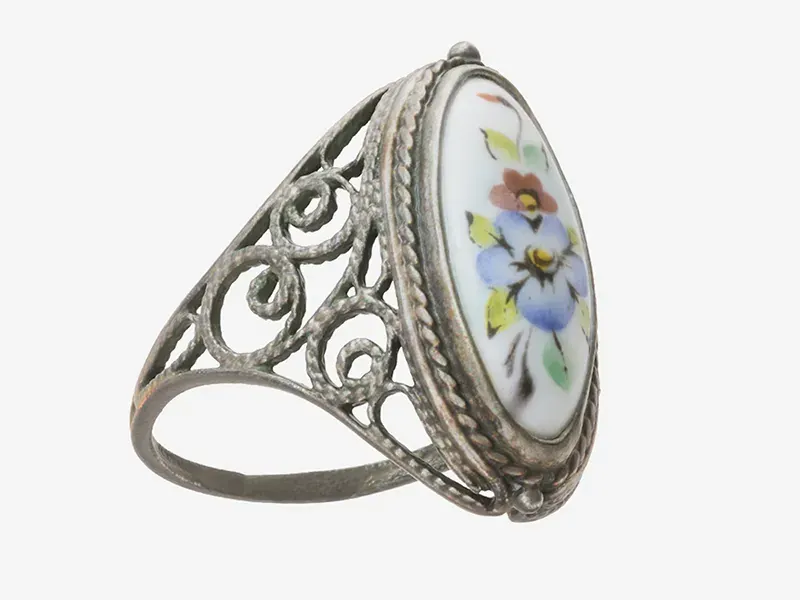

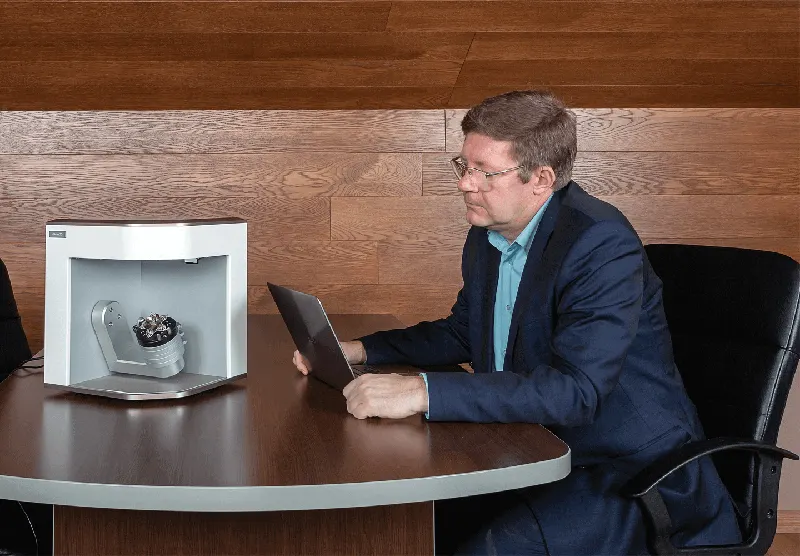

Jewellery 3d Scanning
Capture the most intricate of details, the Artec Micro is the ideal partner for jewellery 3d scanning that requires high resolution for a small volume pieces. The Artec Micro is a compact desktop system that is a valuable addition to CAD/CAM and 3d printing workflows.

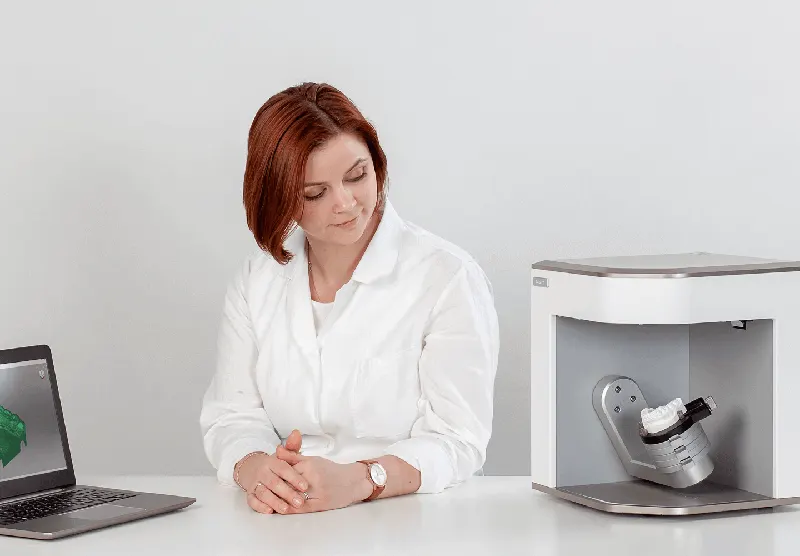

Dental Models
The Artec Micro 3D scanner fits perfectly for dental labs, a compact desktop system that accurately captures single teeth, arches and impressions. Pair up with one of Europac3D’s printers for a clear aligner production workflow.
Sector Suitability
Heritage Industrial Jewellery
Dental Quality Inspection Reverse Engineering
Technical Specifications
| Feature | Artec Micro II |
|---|---|
| Accuracy | 5 Microns |
| Repeatability | 3 Microns |
| Accuracy Certification | ISO12836 |
| Colour Capture | 24 BPP |
| Camera | 4 x 13MP Cameras |
| Scanning Volume | 200 x 200 x 150mm |
| Data Aquisition speed | 1 million points per second |
| Scanner Size | 396 x 405 x 337mm |
| Light Source | RGB LED |
| Output Data Format | STL, OBJ, WRML |
| Moving Stage | 3 Axis CNC |
| Interface | USB 3.0 |
| Weight | 12 KG |
For more information please get in touch
