3D SCANNING SERVICE

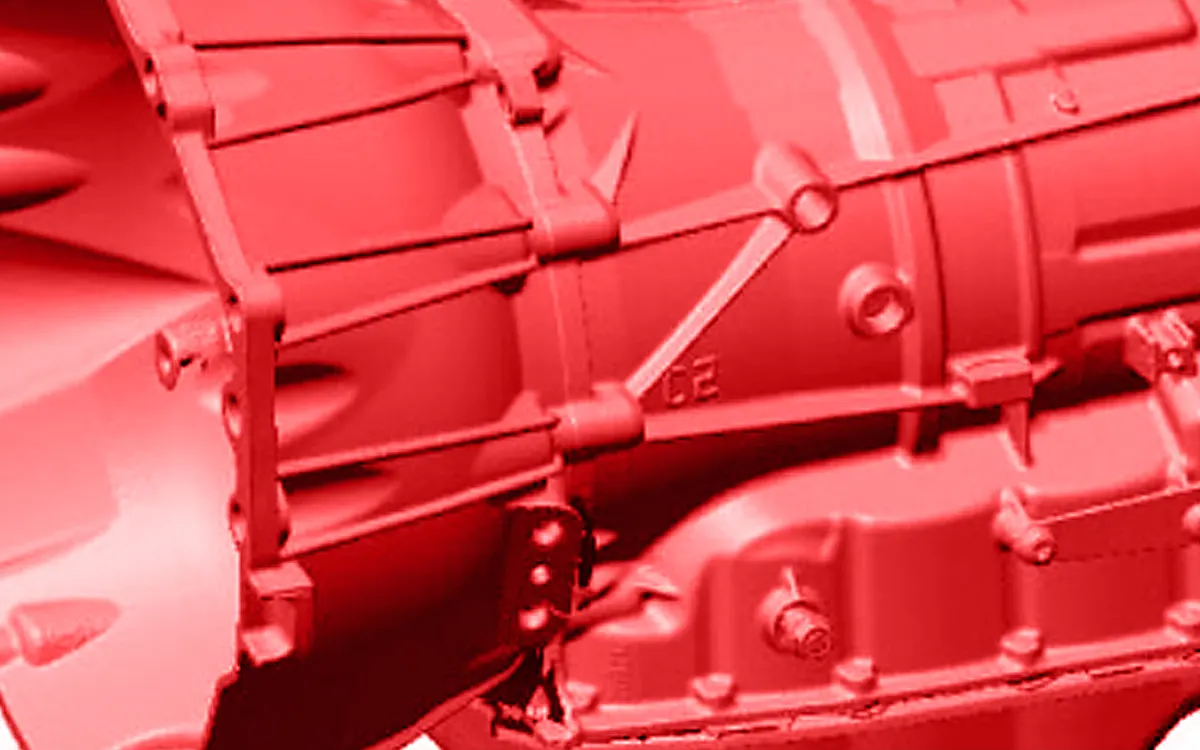

Parametric Solid Model
Using scan data as a reference it is possible to create parametric CAD models as if designed in your native CAD system. Design intent can be analysed and adjusted to create a ‘perfect’ model from ‘imperfect’ real world parts. This method is particularly useful for the end process of:
Manufacture of legacy parts or components without 3D designs
Creating 2D drawings
Use in all major CAD systems including, Catia, Solidworks, PTC Creo, Siemens NX and Autodesk Inventor
3d printing for production
Component assemblies

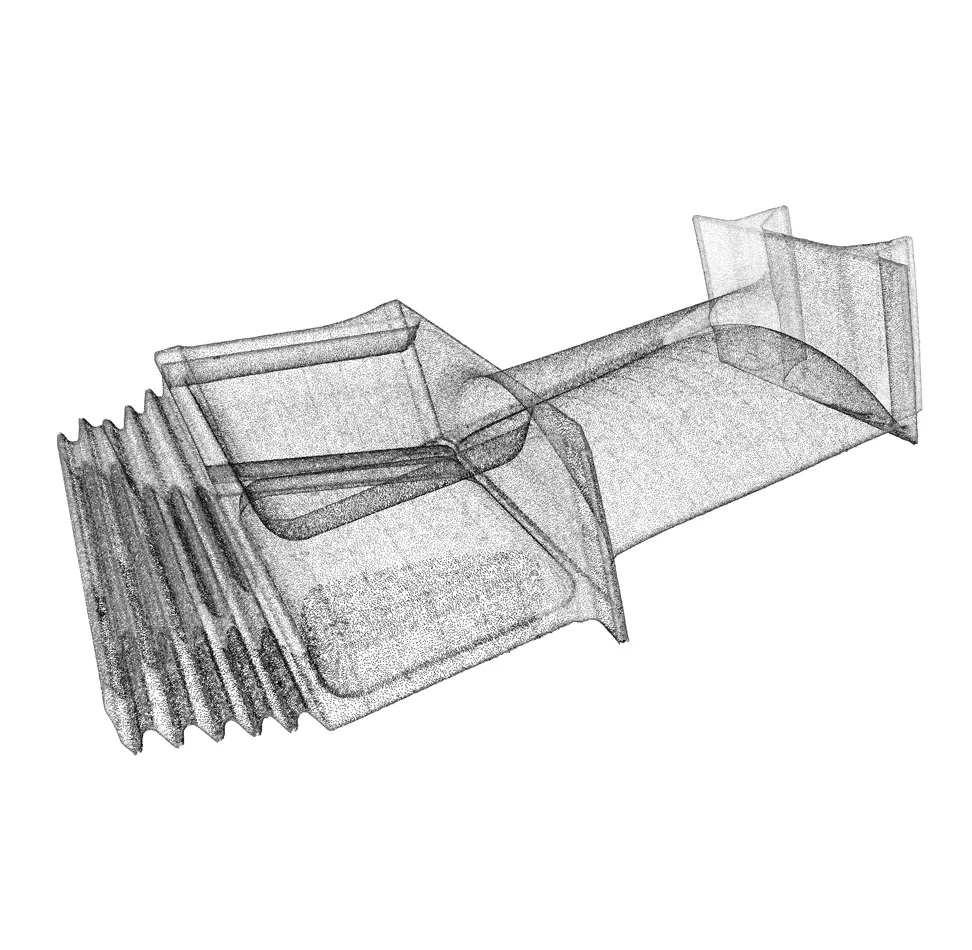

Point Cloud
Point Cloud The quickest, easiest format to produce. Point cloud output is ideal for customers who are accustomed to 3D data and have their own software.

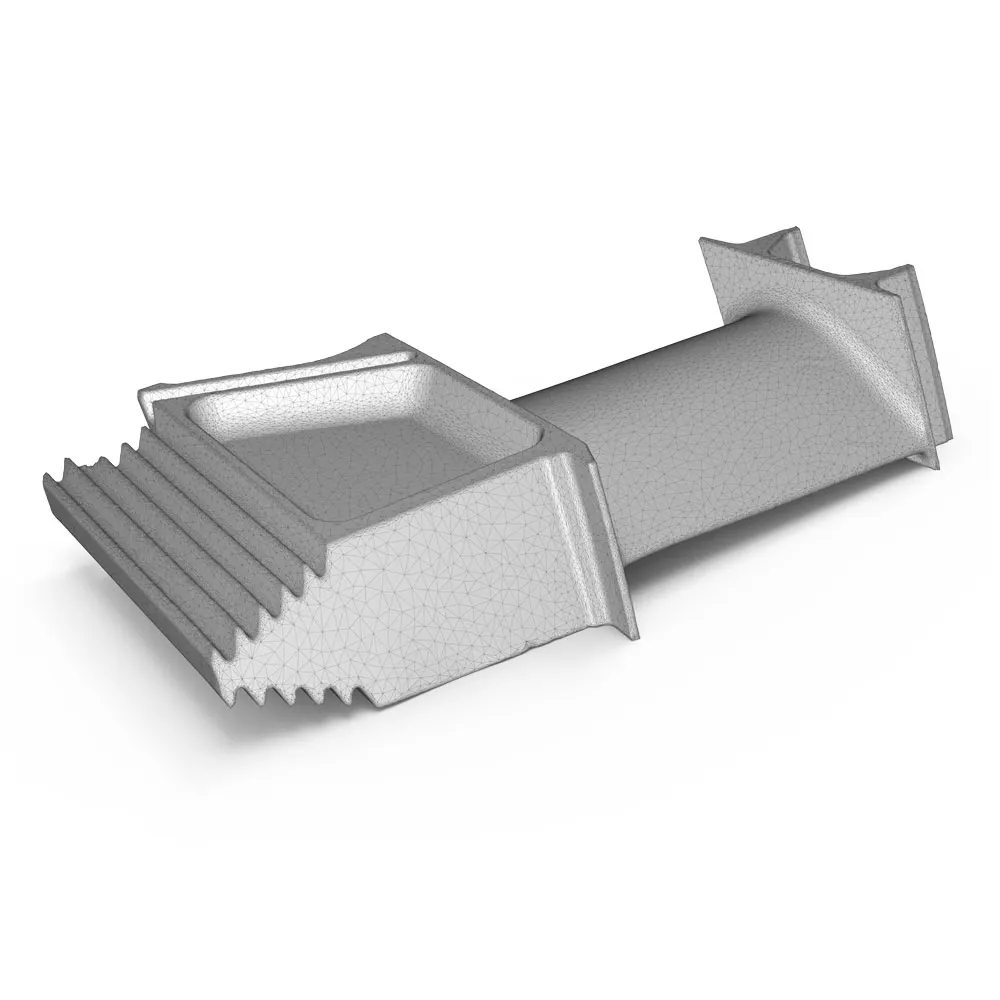

Polygonal Mesh
Polygonal Mesh A polygonal mesh is typically a 3D object comprising of triangles that make up its 3d surface. Sometimes known as an STL file.

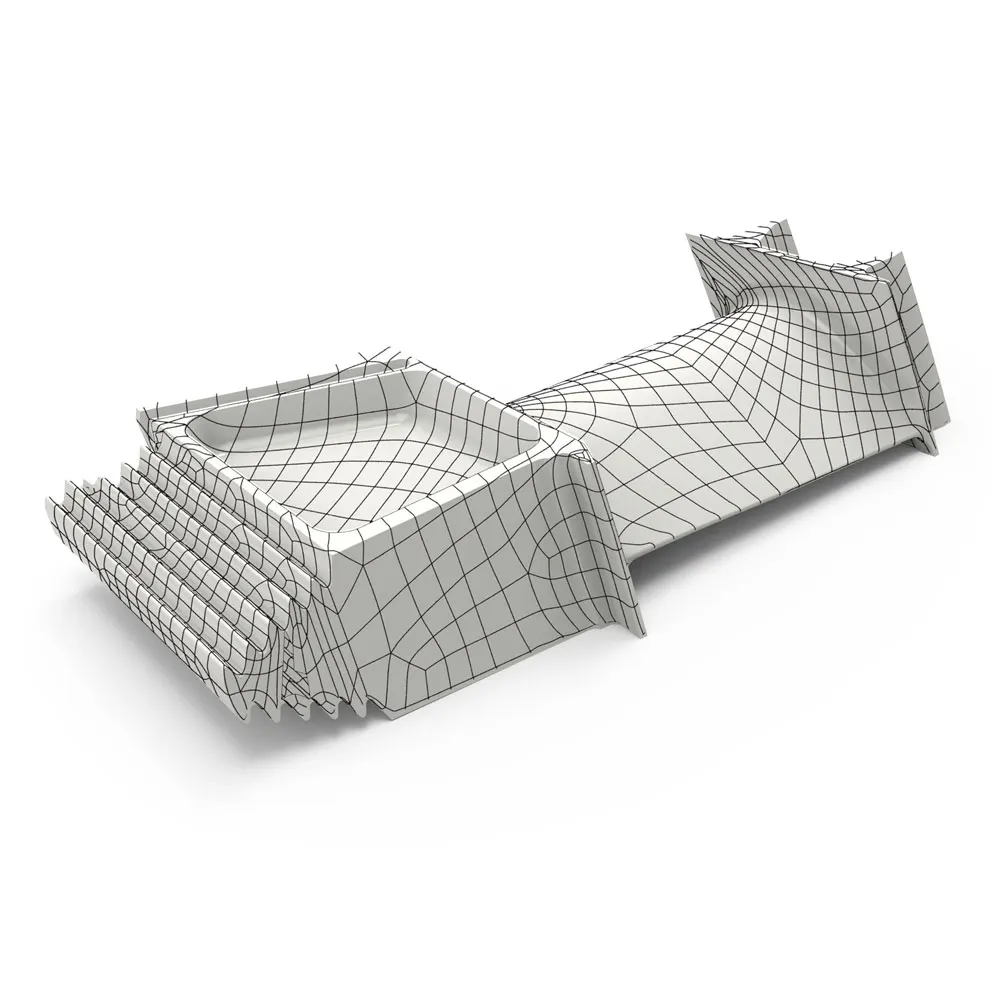

Rapid Surface Model
Rapid Surface Model It is sometimes necessary to create a 3D CAD model as quickly as possible in order to get the object into the 3D environment.

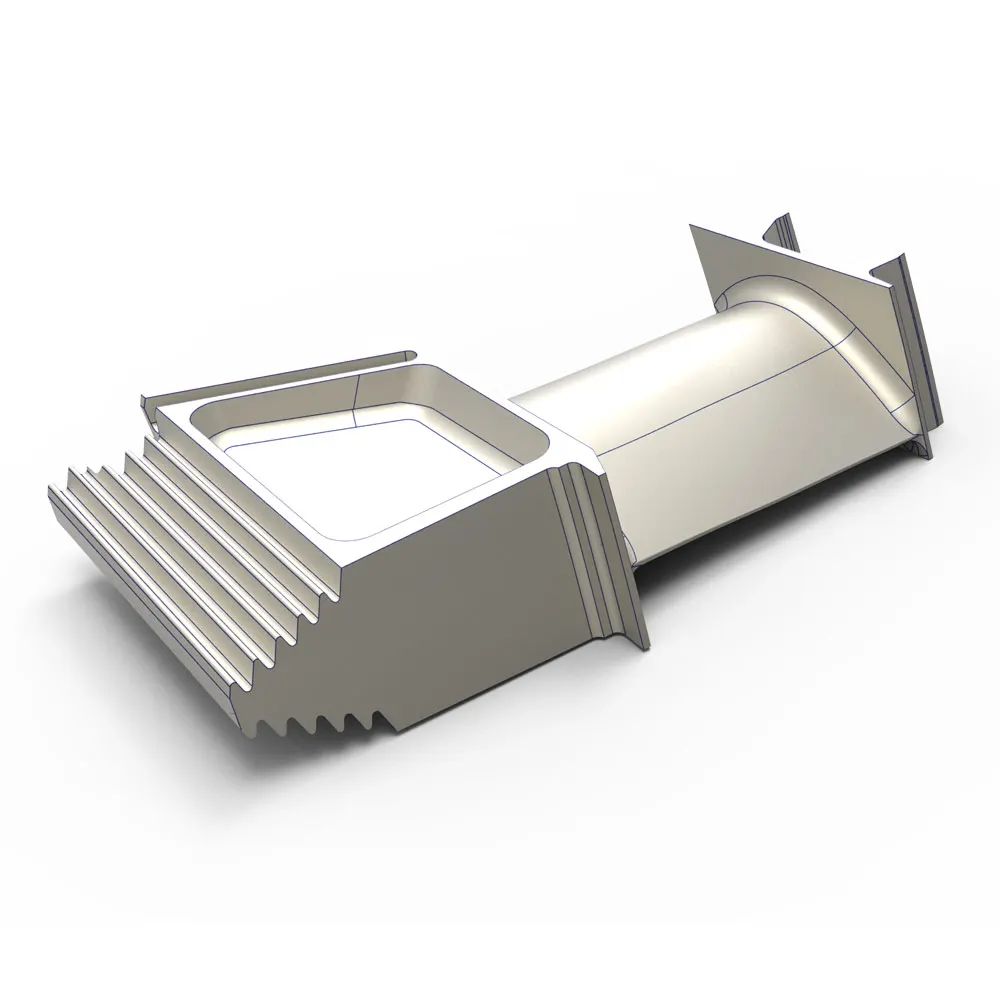

Parametric Solid Model
Parametric Solid Model Using scan data as a reference it is possible to create parametric CAD models as if designed in your native CAD system.
