Kreon Ace measuring arm bundled with the Skyline laser scanner — portable touch-probe measurement as standard, high-accuracy 3D scanning on the same arm.

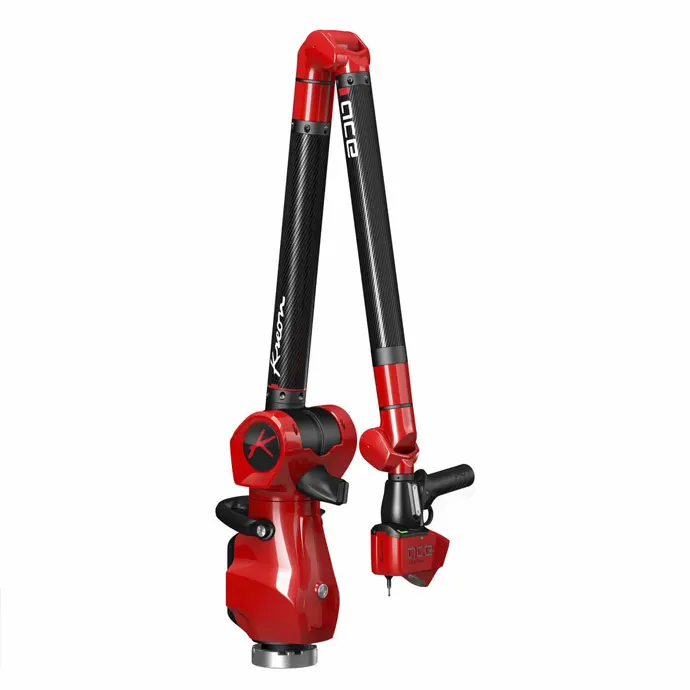

Kreon Ace Skyline Scanning and Measurement Arm

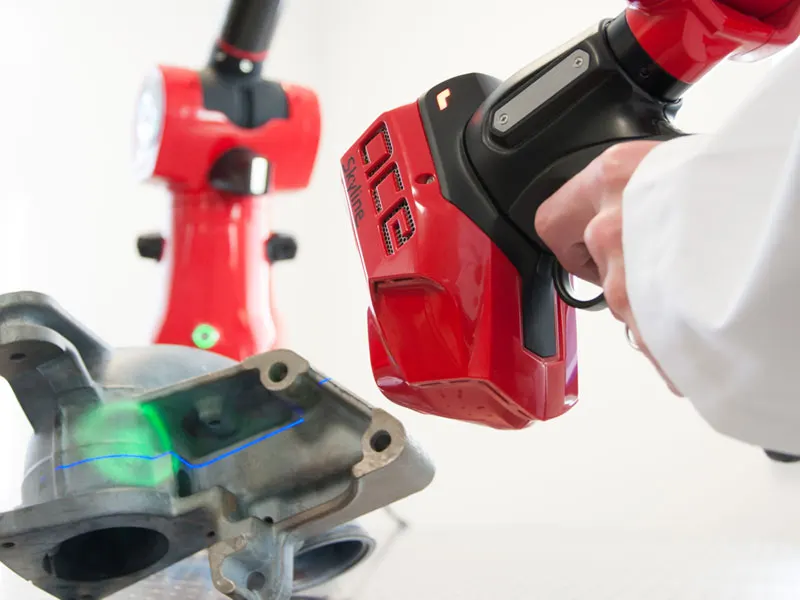

Ace Skyline combines the Kreon Ace measuring arm with the Skyline blue laser scanner, giving you one flexible system for contact and non-contact 3D measurement. Probe datums and features with the touch probe, then scan whole surfaces with the laser — without recalibrating, and without moving the part.

It is a system built for reverse engineering, CAD comparison and dimensional inspection: the wide laser line and high frame rate cut the number of scan passes, so complex parts are digitised in a fraction of the time a narrow-line scanner needs.

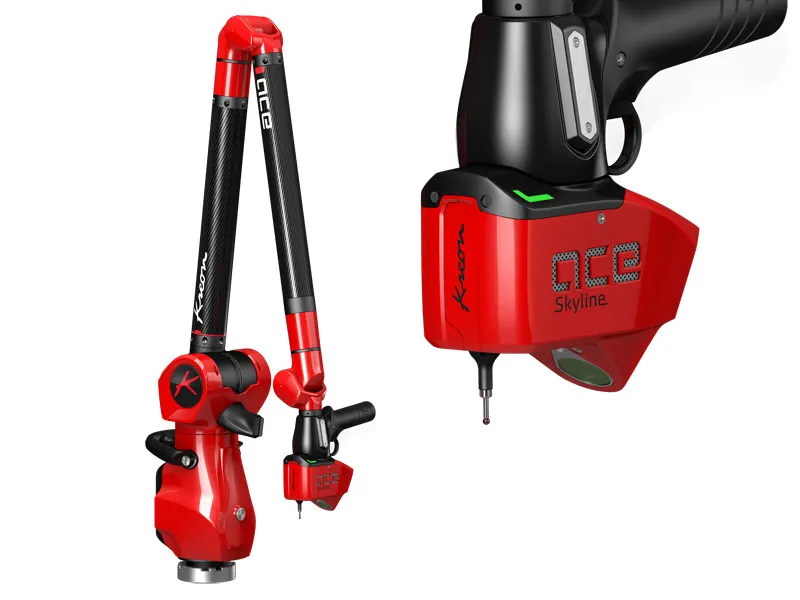

Skyline scanner removes without tools — switch between scanning and probing in seconds

Probe directly with the scanner mounted, in the same measuring range

Wireless probing over WiFi or Bluetooth

Internal counterbalance takes the weight away from the user's wrist

Aluminium and carbon construction for low weight and stiffness

Compensation of ambient temperature for consistent accuracy on the shop floor

Key Specifications

600,000 pts/sec

Scanning speed

9 µm (2σ)

Scanner accuracy

300 mm

Max laser line width

300 Hz

Line frequency

Maximum values across the Skyline scanner range — the table below shows how each model compares.

Skyline Scanner Range

Four Skyline scanners fit the Ace arm, from the high-accuracy Eyes to the 300 mm line of the Xtra Wide and the cost-effective Open. All use a blue laser, which keeps accuracy high even on shiny, reflective surfaces, and all are validated in accordance with the ISO 10360-8 standard.

Specification	Skyline Eyes	Skyline Wide	Skyline Xtra Wide	Skyline Open
Max scanning speed	600,000 pts/sec	600,000 pts/sec	600,000 pts/sec	200,000 pts/sec
Accuracy (2σ)	9 µm	15 µm	28 µm	15 µm
Max laser line width	100 mm	200 mm	300 mm	100 mm
Max frequency	300 Hz	300 Hz	300 Hz	200 Hz
Laser line colour	Blue	Blue	Blue	Blue
Line resolution	25 µm	50 µm	60 µm	50 µm
Stand-off distance	90 mm	85 mm	100 mm	85 mm
Field of view	80 mm	110 mm	135 mm	110 mm
Temperature compensation	Yes	Yes	Yes	No

Ace Measuring Arm Range

The Ace range covers 6- and 7-axis arms with working volumes from 2 m to 5 m. The 7-axis arms carry the Skyline scanner with an ergonomic handle for effortless scanning; the 6-axis versions are built for probing operations with the highest accuracy requirements. Each size is also available as Ace+, a higher-accuracy build of the same arm.

Arm size	Measuring volume (diameter)	Maximum reachable distance (diameter)
Ace-20	2 m	2.42 m
Ace-25	2.5 m	2.92 m
Ace-30	3 m	3.42 m
Ace-35	3.5 m	3.92 m
Ace-40	4 m	4.42 m
Ace-45	4.5 m	4.92 m
Ace-50	5 m	5.42 m

Same measuring volumes for both 6- and 7-axis versions.

Probing Accuracy — ISO 10360-12

Every Kreon arm is certified to the international ISO 10360-12 standard, so accuracy statements are directly comparable between manufacturers. Figures below are for the 7-axis scanning arms.

Arm model	E Uni	P Size	P Form	L Dia	SPAT
Ace 7-20	0.033 mm	0.012 mm	0.020 mm	0.043 mm	0.022 mm
Ace 7-25	0.036 mm	0.015 mm	0.024 mm	0.049 mm	0.026 mm
Ace 7-30	0.057 mm	0.020 mm	0.035 mm	0.081 mm	0.041 mm
Ace 7-35	0.067 mm	0.024 mm	0.041 mm	0.095 mm	0.052 mm
Ace 7-40	0.081 mm	0.029 mm	0.048 mm	0.115 mm	0.064 mm
Ace 7-45	0.110 mm	0.045 mm	0.060 mm	0.125 mm	0.076 mm
Ace 7-50	0.138 mm	0.060 mm	0.075 mm	0.135 mm	0.095 mm

Arm model	E Uni	P Size	P Form	L Dia	SPAT
Ace+ 7-25	0.029 mm	0.012 mm	0.022 mm	0.045 mm	0.024 mm
Ace+ 7-30	0.049 mm	0.017 mm	0.030 mm	0.074 mm	0.038 mm
Ace+ 7-35	0.060 mm	0.021 mm	0.037 mm	0.089 mm	0.045 mm
Ace+ 7-40	0.074 mm	0.026 mm	0.042 mm	0.105 mm	0.054 mm
Ace+ 7-45	0.101 mm	0.040 mm	0.051 mm	0.114 mm	0.067 mm
Ace+ 7-50	0.128 mm	0.056 mm	0.069 mm	0.130 mm	0.092 mm

Scanning System Accuracy — Arm Plus Skyline

System accuracy of each Ace 7-axis arm with each Skyline scanner, as published by Kreon:

Arm model	Skyline Eyes	Skyline Wide	Skyline Xtra Wide	Skyline Open
Ace 7-20	0.040 mm	0.044 mm	0.056 mm	0.046 mm
Ace 7-25	0.046 mm	0.050 mm	0.062 mm	0.052 mm
Ace 7-30	0.061 mm	0.063 mm	0.075 mm	0.065 mm
Ace 7-35	0.076 mm	0.079 mm	0.091 mm	0.081 mm
Ace 7-40	0.088 mm	0.099 mm	0.111 mm	0.102 mm
Ace 7-45	0.120 mm	0.130 mm	0.142 mm	0.132 mm
Ace 7-50	0.140 mm	0.155 mm	0.167 mm	0.160 mm

Arm model	Skyline Eyes	Skyline Wide	Skyline Xtra Wide	Skyline Open
Ace+ 7-25	0.042 mm	0.046 mm	0.058 mm	0.049 mm
Ace+ 7-30	0.052 mm	0.056 mm	0.068 mm	0.059 mm
Ace+ 7-35	0.066 mm	0.071 mm	0.083 mm	0.073 mm
Ace+ 7-40	0.077 mm	0.081 mm	0.093 mm	0.084 mm
Ace+ 7-45	0.095 mm	0.104 mm	0.116 mm	0.110 mm
Ace+ 7-50	0.125 mm	0.140 mm	0.152 mm	0.146 mm

Why Quicker?

Fewer scan passes — laser lines up to 300 mm wide cover a part in far fewer sweeps

Faster passes — up to 300 lines per second means operators can move quickly over the part without losing data

Rapid inspection of multiple components, reduced reverse engineering time, and time compression from scan to 3D print

Carbon fibre construction of the Kreon Ace arm

Need tighter tolerances still? The premium Kreon Onyx Skyline pairs the same Skyline scanners with Kreon's highest-accuracy arm.

For more information please get in touch

Read about how Kreon 3D Scanners have been used

Works with

Confirmed by us, not inferred from a spec sheet. If yours is not listed, ring and we will check.
