Renishaw Connector
Red Laser
Probe Attachment
Green LED to visualize the scanner’s depth of field
External connector for full versatility

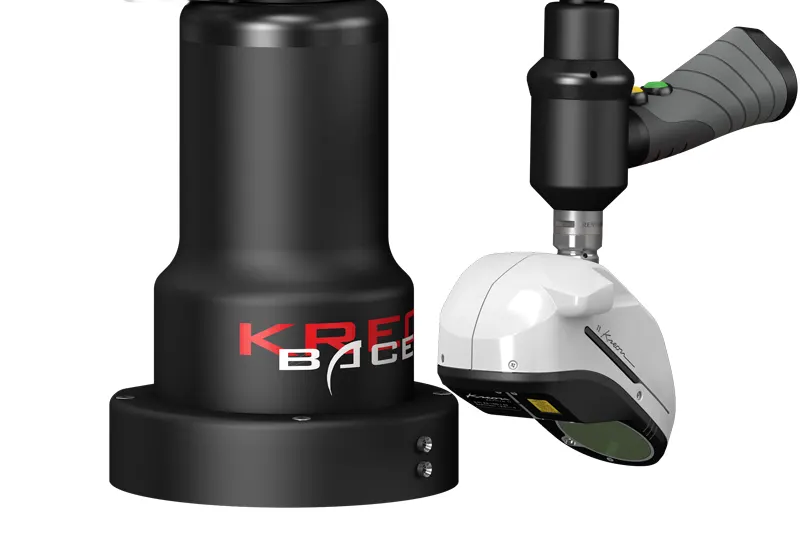

The Kreon Zephyr 2 is the perfect partner for advanced metrology or reverse engineering applications.
A rapid 250,000 points per second data collection means that large areas can be 3d scanned quickly and without loss of detail or resolution.
Attributes
Auto Quality Check
Plug & Play Arm Compatibility
Red Laser Line
Key Specifications
Machine Specifications
Machine Interface – Articulated Measuring Arm
Probe Compatibility In Scanner – Hard Probe, Renishaw TP2/20/200
PC Communication – USB
Arm & Laser Packages
BACES ARM SOLANO PACKAGE
Eco Package
Baces Arm & Solano Laser
Low Cost solution
Fast and flexible
Light weight
ACE ARM SOLANO BLUE PACKAGE
Pro Package
Ace Arm & Solano Blue Laser
Mid level solution suitable for most applications
Temperature compensation
High accuracy and speed
ACE ARM ZEPHYR 2 BLUE PACKAGE
Ultimate Package
Ace Arm & Zephyr II Blue Laser
High End solution for high accuracy and resolution
Temperature compensation
Blue Laser for difficult to scan surfaces
ACE SKYLINE PACKAGE
Ace Package
Ace Skyline
Advanced Scanning Speed
High Resolution & Accuracy
Perfect Integration Between Scanner & Arm
CONTACT US FOR THE BEST PRICES ON THESE PACKAGES
Sector Suitability
Aerospace Automotive Industrial
Technical Specifications
| Feature | Zephyr 2 |
|---|---|
| Scanning Speed | 250,000 pts/sec |
| Accuracy | 15 microns |
| Laser Line Width | 100mm |
| Field Of View | 130mm |
| Line Resolution | 80 microns |
| Standoff Distance | 95mm |
| Auto Quality Check | Yes |
| Temperature Comp | Yes |
| Laser Class | Red Class 2M |
