Renishaw Connector
Blue Laser
Probe Attachment
LED for field visualisation
External connector for full versatility

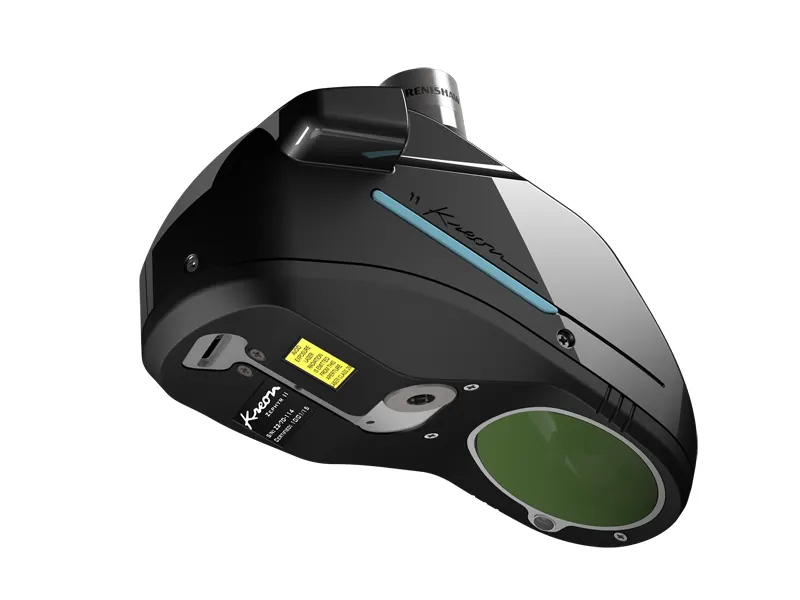

The Kreon Zephyr 2 Blue offers the highest accuracy and resolution of all the Kreon range of 3D scanners.
The blue laser enables 3D scanning of difficult surfaces such as shiny machined metal, while the 250,000 point per second data collection means that small or thin walled features can be captured sharply and accurately. A 10 micron accuracy also ensures the highest level of certainty in demanding engineering applications where it is important to capture down to the micron level.
Attributes
Auto Quality Check
Plug & Play Arm Compatibility
Blue Laser Line
Key Specifications
Machine Specifications
Machine Interface – Articulated Measuring Arm
Probe Compatibility In Scanner – Hard Probe, Renishaw TP2/20/200
PC Communication – USB
Arm & Laser Packages
BACES ARM SOLANO PACKAGE
Eco Package
Baces Arm And Solano Laser
Low Cost solution
Fast and flexible
Light weight
ACE ARM SOLANO BLUE PACKAGE
Pro Package
Ace Arm And Solano Blue Laser
Mid level solution suitable for most applications
Temperature compensation
High accuracy and speed

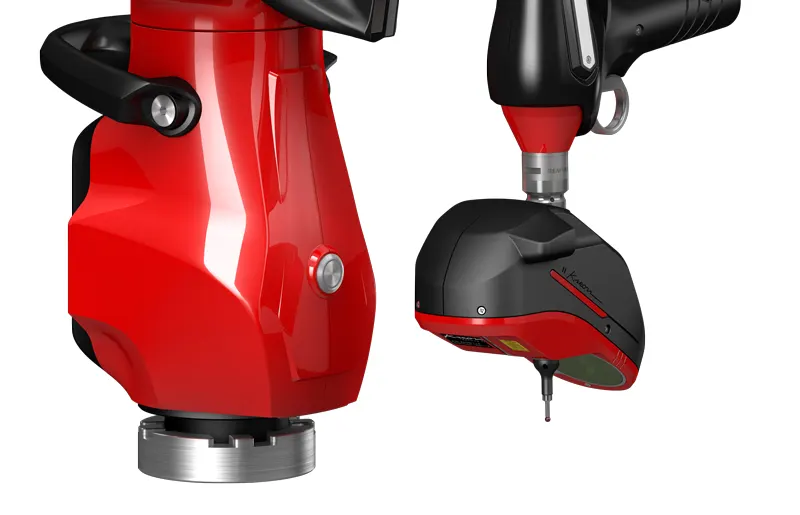

ACE ARM ZEPHYR 2 BLUE PACKAGE
Ultimate Package
Ace Arm And Zephyr II Blue Laser
High End solution for high accuracy and resolution
Temperature compensation
Blue Laser for difficult to scan surfaces
ACE SKYLINE PACKAGE
Ace Package
Ace Skyline
Advanced Scanning Speed
High Resolution & Accuracy
Perfect Integration Between Scanner & Arm
CONTACT US FOR THE BEST PRICES ON THESE PACKAGES
Sector Suitability
Aerospace Automotive Industrial
Technical Specifications
| Feature | Zephyr 2 Blue |
|---|---|
| Scanning Speed | 250,000 pts/sec |
| Accuracy | 10 microns |
| Laser Line Width | 75mm |
| Field Of View | 130mm |
| Line Resolution | 50 microns |
| Standoff Distance | 75mm |
| Auto Quality Check | Yes |
| Temperature Comp | Yes |
| Laser Class | Blue Class 2M |
