Renishaw Connector
Red Laser
Probe Attachment
Green LED to visualize the scanner’s depth of field
External connector for full versatility

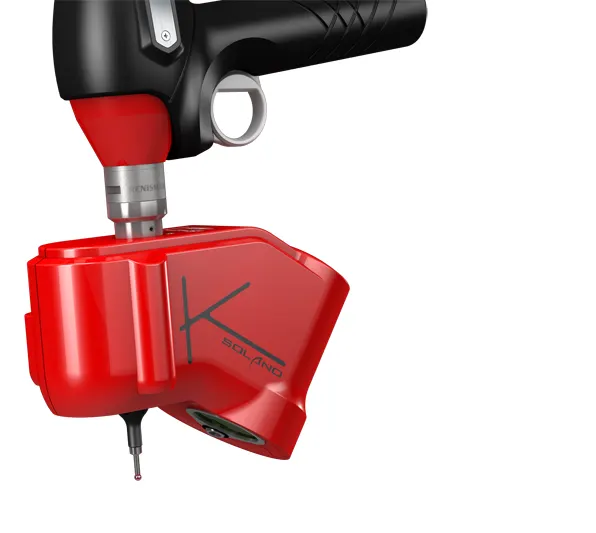

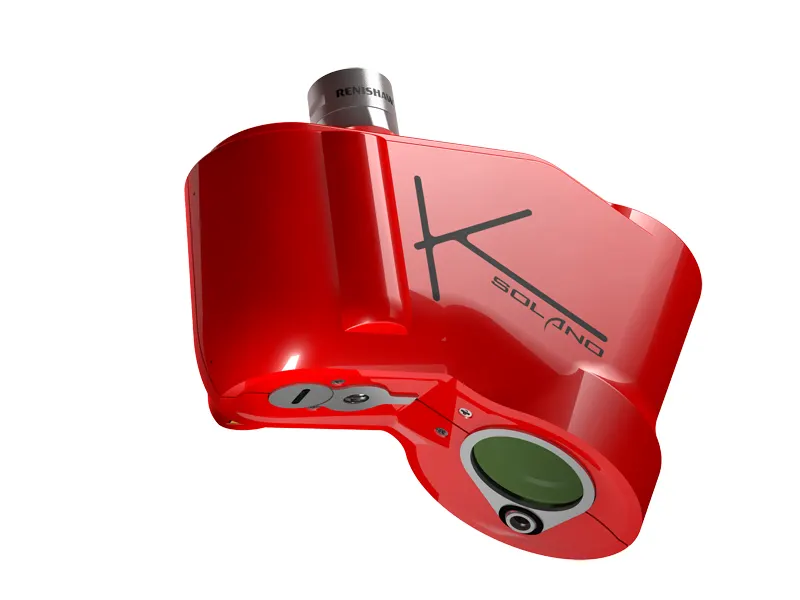

The Kreon Solano is a fantastic option for those looking for a cost effective laser scanning solution, while still holding a high level of accuracy.
It has a 100mm red line laser and it plug and plays into a measuring arm without the need for external controller.
Attributes
Auto Quality Check
Plug & Play Arm Compatibility
Red Laser Line
Key Specifications
Machine Specification
Machine Interface – Articulated Measuring Arm
Probe Compatibility In Scanner – Hard Probe
PC Communication – Ethernet – External Cable for scanner
Arm & Laser Packages

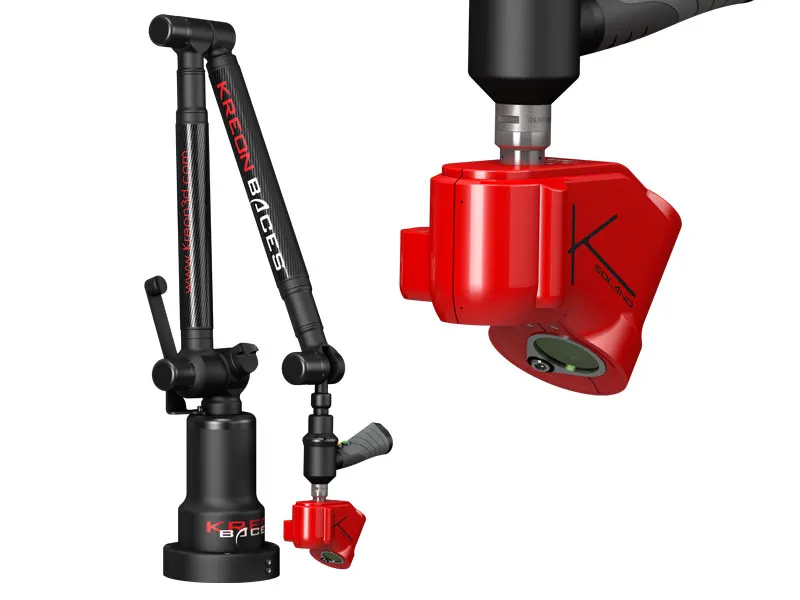

BACES ARM SOLANO PACKAGE
Eco Package
Baces Arm & Solano Laser
Low Cost solution
Fast and flexible
Light weight

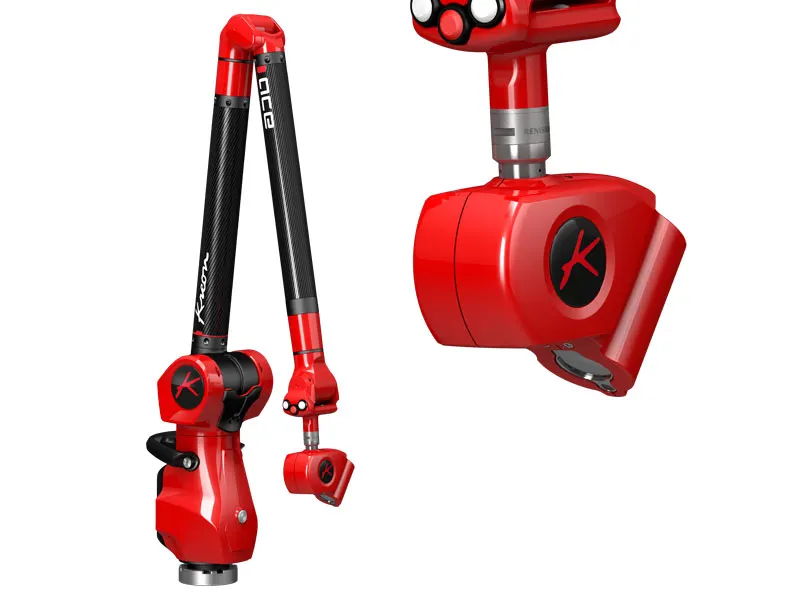

ACE ARM SOLANO BLUE PACKAGE
Pro Package
Ace Arm & Solano Blue Laser
Mid level solution suitable for most applications
Temperature compensation
High accuracy and speed

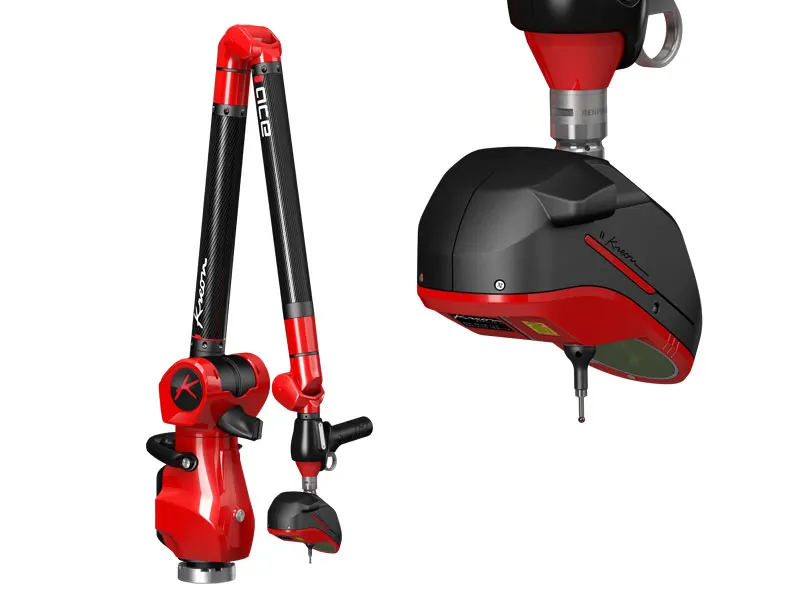

ACE ARM ZEPHYR 2 BLUE PACKAGE
Ultimate Package
Ace Arm & Zephyr II Blue Laser
High End solution for high accuracy and resolution
Temperature compensation
Blue Laser for difficult to scan surfaces

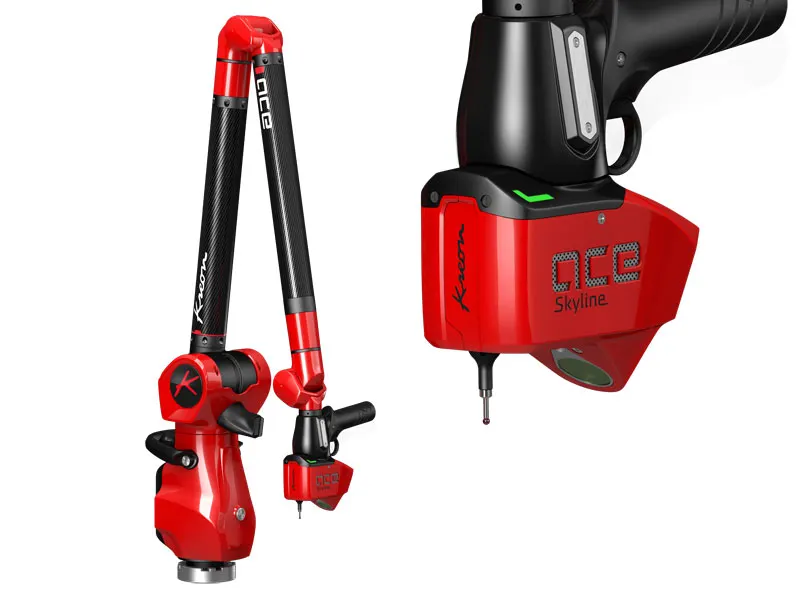

ACE SKYLINE PACKAGE
Ace Package
Ace Skyline
Advanced Scanning Speed
High Resolution & Accuracy
Perfect Integration Between Scanner & Arm
CONTACT US FOR THE BEST PRICES ON THESE PACKAGES
Sector Suitability
Aerospace Automotive Industrial

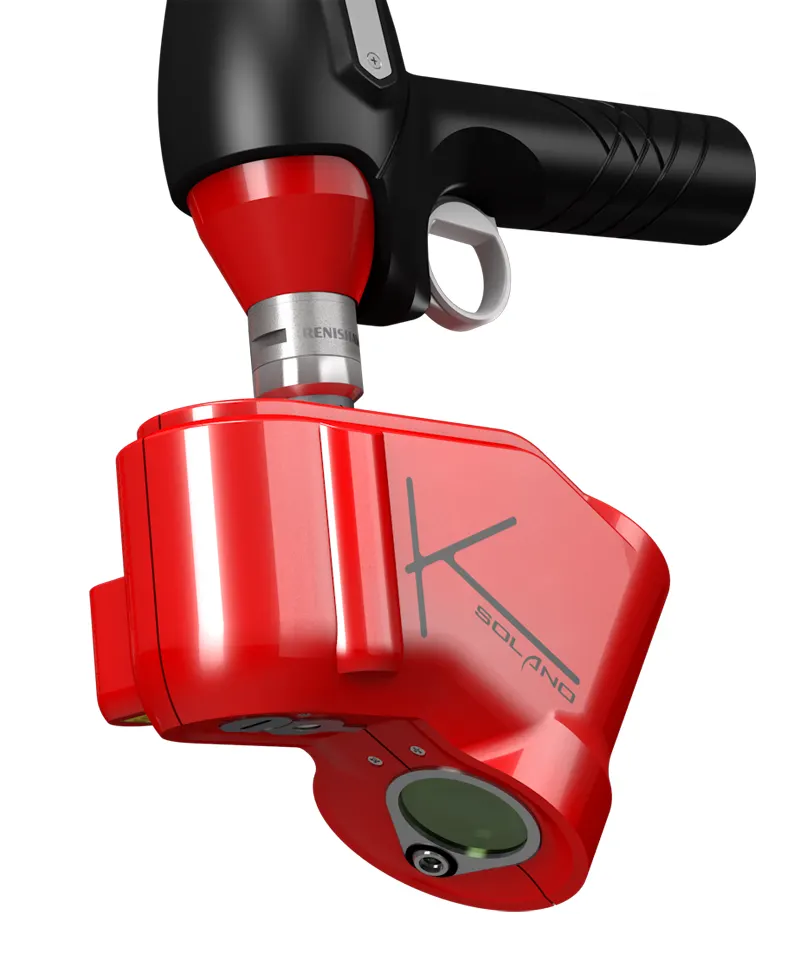

Solano Lite
The Solano Lite is the entry level scanner suitable for simple 3D scanning tasks.
| Feature | Solano | Solano Lite |
|---|---|---|
| Scanning Speed | 40,000 pts/sec | 24,000 pts/sec |
| Accuracy | 30 microns | 40 microns |
| Laser Line Width | 100mm | 100mm |
| Field Of View | 100mm | 100mm |
| Line Resolution | 140 microns | 140 microns |
| Standoff Distance | 50mm | 50mm |
| Auto Quality Check | Yes | Yes |
| Temperature Comp | Yes | Yes |
| Laser Class | Red Class 2M | Red Class 2M |
